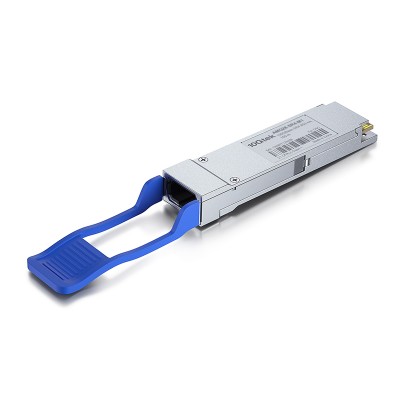

    40G QSFP+ 1310nm DOM 1.4km MPO/MTP SMF Transceiver Module
    Loading...

    40G QSFP+ 1310nm DOM 1.4km MPO/MTP SMF Transceiver Module

    #6206
    SKU:AMQ10-IR4-02
    0 Question(s)
    $179.00

    Maximum 120 characters

    ● 40GBase-LR4 Lite, 40GBase-IR4
    ● Data Rate: 40G, QDR
    ● Wavelength: 1310-nm
    ● Reach: up to 1.4 km
    ● Fiber Type: SMF (Parallel Single Mode)
    ● Interface: 8 Core MPO/MTP

    ● 10Gtek offer Compatible Service

    QSFP+ transceiver is compliant to MSA SFF-8436 40GBASE-IR4, OTU3 and IEEE 802.3ba.
    This is a parallel 40Gb/s QSFP+ optical module, terminated with single mold MPO or MTP Connectors.
    40G IR4 PSM QSFP+ module supports 1.4 km transmission over SMF.
    To better ensure the performance, the following 10Gtek-made SMF MPO/MTP cables are recommended to be used for connecting the QSFP+ transceivers.
    10Gtek's QSFP+ transceivers pass the following IOL Interoperability test with most major brands for both OS and hardware compatibility.

    Features:

    • 40GBase-LR4 Lite, 40GBase-IR4
    • Data Rate: 40G, QDR
    • Ratch: up to 1.4 km
    • Wavelength: 1310-nm
    • Interface: 8 Core MPO/MTP
    • Fiber Type: SMF (Parallel Single Mode)
    • Power Consumption: <3W
    • Excellent EMI performance
    • Temp. Range(℃): 0~70

    Applications:

    • Ethernet 10G, 40G
    • InfiniBand 4X SDR, DDR, QDR
    • Fiber Channel 10G, 40G
    • Rapid IO
    • Rack-to-Rack, Shelf-to-Shelf Interconnect
    • TOR (Top of Rack)

    More Information

    CPNAMQ10-IR4-02 Custom SKUAMQ10-IR4-02
    ModelAMQ10-IR4-02 MSA140GBase-IR4
    Rate40G Reach1.4km
    Wavelength1310nm InterfaceMPO/MTP
    Fiber CableSMF Compatible10Gtek offer Compatible Service
    Temp.0 to 70°C (32 to 158°F) Form TypeQSFP+
    DOM SupportYes Max Data Rate44.8Gbps
    Brand10Gtek
