    UTP Connector

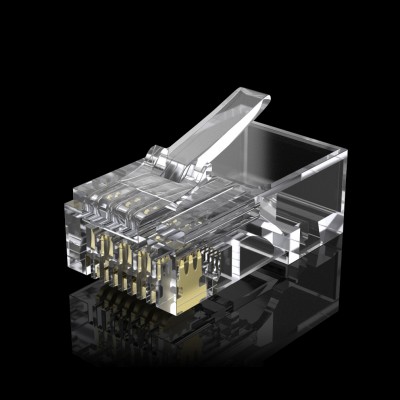

    CAT.6 RJ-45 UTP Connectors, RJ-45 Modular Plugs with flexible latch, 100-Pack
    Loading...

    CAT.6 RJ-45 UTP Connectors, RJ-45 Modular Plugs with flexible latch, 100-Pack

    #5524
    SKU:CAT6-8P8C-15u
    $11.10
    100000 In Stock, 10Gtek.Warehouse

    100000 In Stock, 10Gtek.Warehouse

    ● CAT.6, UTP
    ● 15μ gold plating
    ● 750 cycles plug life
    ● Bendable latch with large angle
    ● Phosphor bronze PINs, 3-Point staggered contact
    ● Performance matches TIA/EIA requirements. Connectors can pass Fluke test.

    CAT6-8P8C-15u, 10Gtek CAT.6 RJ-45 UTP connector, has flexible latch and high reliable PINs.
    Performance matches TIA/EIA568-C requirements and passes Salt Spray 24-hour test.
    The combination of gold-plated contacts provides reliable performance for 1000M/10Gbps rated network.
    Package: 100 /pack

    Features

    • 125V AC max at 1.5 amps
    • Cable-to-Plug tensible strength 30N max.
    • Durability: 750 mating cycles
    • The bandwidth of frequency up to 350MHZ

    Applications

    • The latch is flexible and can be bend into a large angle for several times.
    • Performance matches TIA/EIA requirements. Connectors can pass Fluke test.
    • PINs are made by Phosphor bronze, Nickelage, Gilding. Thickness of gold plating is 15μ. 3-Point staggered contact enhances contact performance. 8 PINs are staggered arrangement to avoid crosstalk.
    • High reliability, can be pluged up to 750 cycles.5. CAT.6, UTP.

    Specifications

    • Data rate: 1000M/10Gbps
    • Thickness of gold plating: 15μ
    • Temperature: - 40℃ ~ 70℃
    • Shell material: PC
    • PIN material: Phosphor bronze, Nickelage, Gilding
