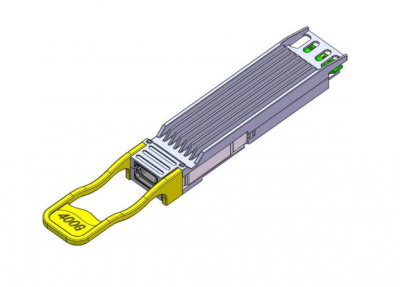

400Gb/s Single-port OSFP DR4, MPO-12 APC, SMF, 500m

10Gtek’s OSFP transceiver module is designed for use in 400 Gigabit Ethernet links over 500m single mode fiber. The module has 8 independent electrical input/output channels at host side with data rate 53.125Gbps per channel. The integrated GearBox in module converts the 8 channels of 53.125Gbps (PAM4) electrical input data to 4 channels of parallel opticalsignals, each capable of 106.25Gbps (PAM4) operation for an aggregate data rate of400Gb/s.

The four transmitter/receiver units operate on 1310nm wavelengths. The electrical interface of the module is compliant with the 400GAUI-8 interface as defined by IEEE 802.3bs, and compliant with OSFP MSA.
