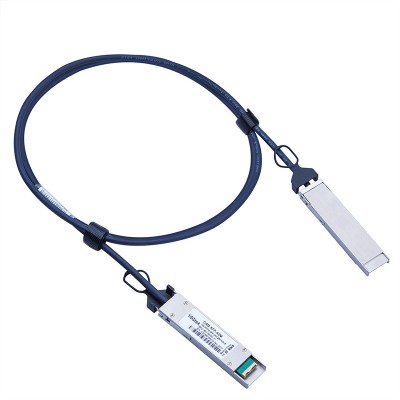

10G XFP to XFP Active DAC Cable 10GBase-CR 0.5~3 meter

XFP Cables were developed to provide 10Gb/s serial links for a wide range of applications including standards such as OC192/STM-64, G.709, and 10 Gigabit Ethernet, 10G Fibre Channel, and other industry standards.
It is ideally suited for 10 GbE datacom (belly-to-belly for high-density applications) and storage area network (SAN/NAS) applications based on the IEEE 802.3ae and Fibre Channel standards.
10Gtek's XFP to XFP Active Cable is a low-cost XFP-SR Optical transceiver replacement solution, which has a signal amplification and a class 10G Clock and Data Recovery(CDR) technology, have equal performance with XFP SR transceivers.

Features:

• XFP to XFP Connetor
• Copper Active
• 0.5~3 Meter
• AWG30
• Compliant to XFP MSA
• Compliance to Fiber Channel
• 1200-M5-SN-l, 1200-M5E-SN-l,
• 1200-M6-SN-l at 10.51875Gbit/s
• Low power consumption
• Wide operating temperature range:
• Standard: 0ºC to +70ºC
• Industrial: -40ºC to +85ºC
• Hot pluggable
• Lead free
• AC coupling of PECL signals
• Excellent EMI performance
• High reliability
• RoHS Compliant

Applications:

• Data networking
• Telecommunications switches (SONET)
• Enterprise storage area network(SAN/NAS)
• Network switches and routers
• 10 GbE datacom (belly-to-belly for high density applications)
