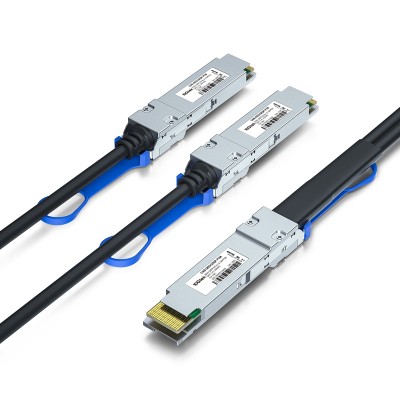

200G QSFP-DD to 2x100G QSFP28 Passive Direct Attach Copper Breakout Cable application is "break-out" DAC assembly which is a hybrid transition from a QSFP-DD on one terminal to two individual QSFP28 on the other.
The QSFP-DD to two parallel bi-directional channels each operating at up to 100Gbps.
Features:
- Same footprint as QSFP interconnects for backward compatibility
- Length: 0.5~2 meters
- Passive
- MCU
- 30/26AWG
- Low power consumption
- Excellent EMI performance
- Temp. Range (℃): 0~70
Applications:
- Ethernet 40G, 100G, 200G
- InfiniBand HDR, EDR, QDR
- Rack-to-Rack, Shelf-to-Shelf Interconnect
- TOR (Top of Rack)
Compliant:
- Compliant to IEEE 802.3cd and IEEE 802.3bs
- InfiniBand HDR, EDR, QDR
- RoHS compliant
More Information
| Custom SKU | CAB-QDD/2ZQP-P | CPN | CAB-QDD/2ZQP-P |
|---|---|---|---|
| Model | CAB-QDD/2ZQP-P | Spec. AWG | 30 |
| b100_msa | QSFP-DD | Rate | 200G |
| Max Data Rate | 200Gbps | b111_rate1 | multi-rate |
| インターフェース | QSFP-DD to (2) 100G QSFP28 | Spec. P/A | Passive |
| Spec. E/M | MCU | Brand | 10Gtek |
