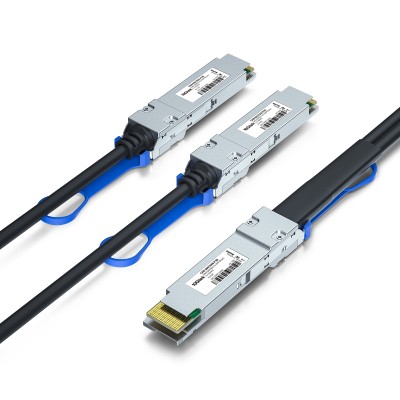

200G QSFP56 to 2x QSFP56 Cable application is "break-out" DAC assembly which is a hybrid transition from a QSFP56 on one terminal to two individual QSFP56 on the other.
The QSFP56 to two parallel bi-directional channels each operating at up to 100Gbps
Features:
- Same footprint as QSFP interconnects for backward compatibility
- Length: 1~3 meters
- Passive
- MCU
- 30/26AWG
- Low power consumption
- Excellent EMI performance
- Temp. Range (℃): 0~70
- Low crosstalk
Applications:
- Ethernet 10G, 40G, 56G, 100G, 200G
- Infiniband SDR, QDR, FDR, EDR, HDR
- Rack-to-Rack, Shelf-to-Shelf Interconnect
- TOR (Top of Rack)
Compliant:
- Compliant with IEEE802.3bj & IEEE802.3cd
- Infiniband SDR, QDR, FDR, EDR, HDR
- RoHS compliant
- Compliant with SFF-8636
More Information
| Custom SKU | CAB-Q56/2Q56-P | CPN | CAB-Q56/2Q56-P |
|---|---|---|---|
| Model | CAB-Q56/2Q56-P | Spec. AWG | 30/26 |
| b100_msa | QSFP56 | Rate | 200G |
| Max Data Rate | 200Gbps | b111_rate1 | multi-rate |
| インターフェース | QSFP56 to (2) 100G | Spec. P/A | Passive |
| Spec. E/M | MCU | Brand | 10Gtek |
