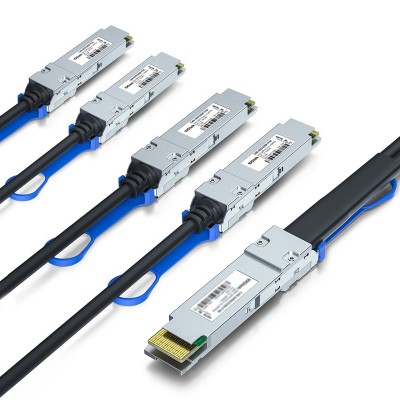

400G QSFP-DD to (4x) 100G QSFP56 Passive Copper DAC Cable 0.5~3 meter

Features:

• Compliant with QSFP DD MSA Specification Rev 3.0
• SFF‐8679 electrical interface compliant
• SFF‐8636 management interface support
• Compliant with SFF-8665
• Compliant with IEEE802.3cd Standard
• Support 50G (PAM4) electrical data rates/channel
• I2C for EEPROM communication
• Pull to Release latch design
• Excellent EMI/EMC performance 360degree cable shield termination
• Low loss, stronger mechanical features
• Operating Case Temperature: 0℃~70
• Compliant with RoHS
• In the event of conflict between the requirements of the specification and the product drawing, the product drawing shall take precedence. In the event of conflict between the requirements of this specification and the referenced documents, this specification shall take precedence.

Applications:

• Low EMI radiation Switches, servers and routers
• Data Center networks
• Storage area networks
• High performance computing
• Telecommunication and wireless infrastructure
• Medical diagnostics and networking
• Test and measurement equipment
• Multi-platform service systems
• This is not a definitive list of applications for this product. It represents some of the more common uses.
