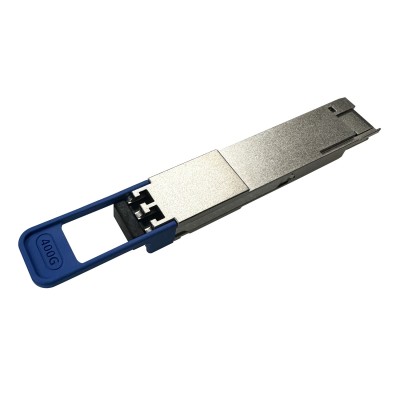

400Gb/s QSFP-DD LR4, Duplex SMF, 10-km

10Gtek’s QSFP-DD 400Gbps transceiver module is designed for optical communication applications in 400 Gigabit Ethernet links over 10km single mode fiber.

This product converts 8 channels of 50Gbps(PAM4) electrical input data to 4 channels of 100Gbps (PAM4) CWDM optical signals. Reversely, on the

receiver side, 4 channels of CWDM optical signals of 100Gbps (PAM4) converts to 8 channels of 50Gbps (PAM4) electrical output data. The central wavelengths of 4 channels are the ITU G.694.2 CWDM grid

near 1300nm, and per channel operating at 100Gbps. The electrical interface of the module is compliant with the 400GAUI-8 interface as defined by IEEE 802.3bs, and the form factor, optical/electrical

connection and digital diagnostic interface compliant with QSFP-DD MSA.
