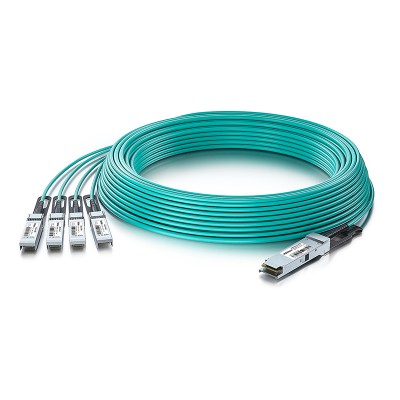

QSFP+ to (4x) SFP+ AOC 40G Active Optical Cable OM3 MMF

10Gtek’s QSFP+ to 4x SFP+ AOC cable is a 40GBase QSFP+ hybrid optical cable. A side is a QSFP+ optical connector, B side is 4 SFP+ optical connectors.
It’s an application for the link with QSFP+ port on 40Gb/s rate switch or host and feeds up to 4 upstream 10Gb/s switch or host.

Features:

• 40GBase QSFP+ to 4x 10G SFP+ Connectors
• OM3 MMF Cable
• Full duplex 4 channel 850nm parallel active optical cable
• Transmission data rate up to 10.3Gbit/s per channel
• SFF-8436 QSFP+ compliant housing and hot pluggable electrical interface.
• Management Interface and digital diagnostic monitoring(DDM) through I2C
• Support Rx output pre-emphasis
• 4ch 850nm VCSEL array
• 4ch PIN photo detector array
• Helix type multi-mode optical fibre cable of up to 100m
• OFNP (Optical Fibre Non-Conductive Plenum) rated cable
• Differential AC-coupled high speed data interface
• Low power consumption of typical 0.8W per end
• Housing isolated from connector ground
• Easy to use release mechanism
• Operating case temperature 0ºC to +70ºC
• 3.3V power supply voltage
• RoHS 6 compliant
• Laser Class 1

Applications:

• 40G Ethernet, 10GEthernet
• TOR Switch
• Datacom and Telecom switch or router backplane connection
• High performance computing interconnect
