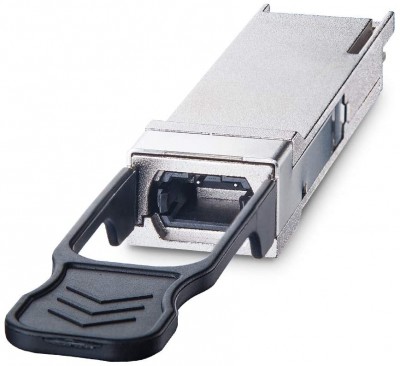

40GBase-eSR4 40G QSFP+ 850nm DOM 300m@OM3 MPO/MTP MMF Transceiver Module

QSFP+ transceiver is compliant to MSA SFF-8436 40GBase-SR4 and IEEE 802.3ba.
This is a parallel 40Gb/s Quad Small Form-factor Pluggable (QSFP+) optical module, terminated with MPO or MTP Connectors.
40G eSR4 QSFP+ module supports 300 meters transmission over OM3 MMF or 400 meters transmission over OM4 MMF.
To better ensure the performance, the following 10Gtek-made MPO/MTP cables are recommended to be used for connecting the QSFP+ transceivers.
10Gtek's QSFP+ transceivers pass the following IOL Interoperability test with most major brands for both OS and hardware compatibility.

Features:

• 40GBase-eSR4
• Data Rate: 40G, QDR
• Wavelength: 850-nm
• Ratch1: up to 300 meters @ OM3 MMF
• Ratch2: up to 400 meters @ OM4 MMF
• Fiber Type: OM3/OM4 MMF
• Power Consumption: <1.5W
• Excellent EMI performance
• Temp. Range(℃): 0~70

Applications:

• Ethernet 10G, 40G
• InfiniBand 4X SDR, DDR, QDR
• Fiber Channel 10G, 40G
• Rapid IO
• Rack-to-Rack, Shelf-to-Shelf Interconnect
• TOR (Top of Rack)
