    40GBase-SR4-BiDi 40G QSFP+ 850~890nm DOM 100m@OM3 150m@OM4 Dual LC MMF Transceiver Module
    Loading...

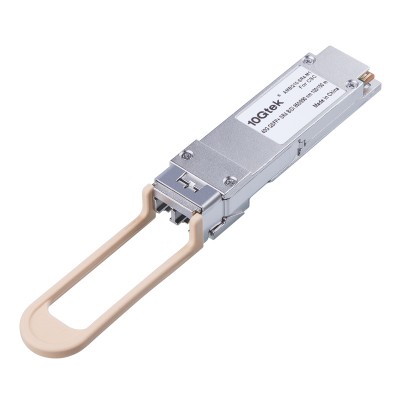

    40GBase-SR4-BiDi 40G QSFP+ 850~890nm DOM 100m@OM3 150m@OM4 Dual LC MMF Transceiver Module

    #6208
    SKU:QSFP-40G-SR-BD
    0 Question(s)
    As low as $259.00

    Maximum 120 characters

    ● HPE incompatible for HPP-Aruba
    ● 40GBase-SR4-BiDi
    ● Data Rate: 40G, QDR
    ● Wavelength: 850~890-nm
    ● Reach1: up to 100 meters @ OM3 MMF
    ● Reach2: up to 150 meters @ OM4 MMF
    ● Fiber Type: OM3/OM4 MMF
    ● Interface: Dual LC connectors

    ● 10Gtek offer Compatible Service

    40Gbps QSFP BiDi transceiver reduces overall costs and installation time for customers migrating data center aggregation links to 40Gbps connections.
    This QSFP BiDi transceiver has two 20Gbps channels, each transmitted and received simultaneously over two wavelengths on a single MMF strand.
    The result is an aggregated duplex 40Gbps link over a MMF duplex LC fiber cable.
    The connection can reach 100 meters on OM3 MMF or 150 meters on OM4 MMF, which is the same as 40Gbps SR4.
    It provides the capability to reuse 10Gbps fiber infrastructure. In other words, it enables data center operators to upgrade to 40Gbps connectivity without making any changes to the previous 10Gbps fiber cable plant.
    10Gtek's QSFP+ transceivers pass the following IOL Interoperability test with most major brands for both OS and hardware compatibility.

    Features:

    • 40GBase-SR4-BiDi
    • Data Rate: 40G, QDR
    • Wavelength: 850~890-nm
    • Interface: Daul LC Connectors
    • Ratch1: up to 100 meters @ OM3 MMF
    • Ratch2: up to 150 meters @ OM4 MMF
    • Fiber Type: OM3/OM4 MMF
    • Power Consumption: <1.5W
    • Excellent EMI performance
    • Temp. Range(℃): 0~70

    Applications:

    • Ethernet 10G, 40G

    More Information

    CPNQSFP-40G-SR-BD Custom SKUQSFP-40G-SR-BD
    ModelQSFP-40G-SR-BD MSA40GBase-SR4-BiDi
    Rate40G Reach100m@OM3
    Reach1150m@OM4 Wavelength850~890nm
    InterfaceDual LC Fiber CableMMF
    Compatible10Gtek offer Compatible Service Temp.0 to 70°C (32 to 158°F)
    Form TypeQSFP+ DOM SupportYes
    Max Data Rate44.8Gbps Brand10Gtek
