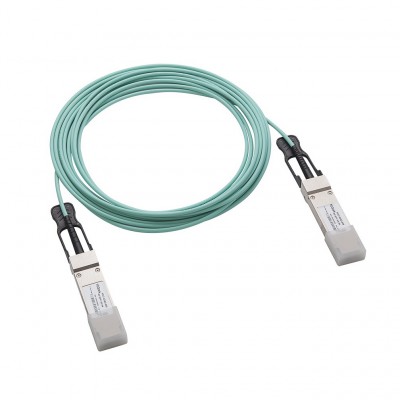

QSFP+ to QSFP+ AOC 56G Active Optical Cable OM3 MMF 1~100 meter

10Gtek Interconnect Solutions 56Gb/s Low Power Active Optical Cable assemblies offer a cost-effective, extended reach option for high-speed data center interconnects. Using 850nm VCSEL technology, 10Gtek QSFP+ cable is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 14 Gb/s per direction, providing an aggregated rate of 56 Gb/s. The cable is available in a number of standard lengths up to 100 meters.

Features:

• 4-channel bi-directional AOC with aggregated bandwidth of 56-Gbps (Electrical Interface Only)
• Compliant to SFF-8436 QSFP+ Specification Revision 4.1
• Supports 56-Gbps aggregated data-rate links up to 100-Meter
• Low power consumption of max 1.5 W (Compliant to Power Level 1)
• Hot pluggable electrical interface
• 0 to 70℃ case temperature operating range
• RoHS Compliance and Lead-Free

Applications:

• InfiniBand FDR,QDR,DDR,and SDR
• 40GBASE-SR4 Ethernet links
• 4G/8G/10G Fiber Channel
• SATA/SAS Storage
• HPC Interconnects
• Proprietary Interconnections
