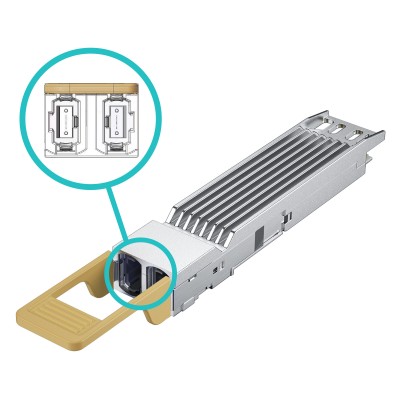

10Gtek’s OSFP 2x400G transceiver module is designed for use in 2x400 Gigabit Ethernet links over 30m OM3 or 50m OM4 fiber. The module has 8 independent electrical input/output channels operating up to 106.25Gbps per channel. This transceiver consists of two transmitter/receiver units, with each operating on 850nm wavelength. The transmitter path of the module incorporates a PAM4 re-timer ASIC with two 4-channel modulator drivers and 8 modulated lasers. On the receiver path, it consists of 8 photodiodes and two 4-channel TIAs, along with the PAM4 re-timer. The electrical interface of the module is compliant with the 400GAUI-4 interface as defined by IEEE 802.3ck, and compliant with OSFP MSA.
Features
- Supports 850Gbps
- Single 3.3V Power Supply
- Power dissipation < 16W
- 125GBd (PAM4) Electrical Interface
- Dual MPO-12 Connector APC
- Case Temperature Range: 0°C to 70°C
- VCSEL Transmitter
- PIN and TIA Array on the Receiver Side
- I2C Interface with Integrated Digital Diagnostic Monitoring
- Safety Certification: TUV/UL/FDA*1
- RoHS Compliant
- OSFP MSA Compliant
Applications
- 2x200GbE
- 8x100GbE
More Information
| CPN | OSFPSR8X100 | Custom SKU | OSFPSR8X100 |
|---|---|---|---|
| Model | OSFPSR8X100 | MSA | 800GBase-SR8 |
| Rate | 800G | Reach | 30m |
| Reach1 | 30m@OM3 or 50m@OM4 | Wavelength | 850nm |
| Fiber Cable | MMF | Compatible | 10Gtek offer Compatible Service |
| Temp. | 0 to 70°C (32 to 158°F) | Form Type | OSFP |
| Max Data Rate | 800Gbps | Brand | 10Gtek |
