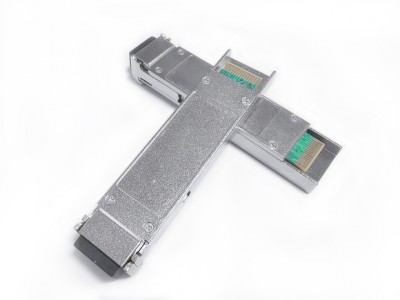

The XFP module is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of 8.0~11.1Gbps, and transmission distance up to 40km on SMF.
The transceiver module comprises a transmitter with DFB laser and a receiver with a PIN photodiode.
Transmitter and receiver are separate within a wide temperature range and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.
Features:
- Supports 8.0Gb/s to 11.1Gb/s bit rates
- Hot-pluggable XFP footprint, Built-in digital diagnos
- Maximum link length of 40km with SMF
- DFB laser and PIN photodiode
- XFP MSA package with duplex LC connector
- No reference clock required
- Single +3.3V power supply
- Power dissipation <1.5W
- Compatible with RoHS
- Temperature range：0 to +70°C
Applications:
- SONET OC-192&SDH STM-64 at 9.953Gbps
- 10GBASE-LR/LW 10G Ethernet
- 1200-SM-LL-L 10G Fibre Channel
- 10GE over G.709 at 11.09Gbps
- OC192 over FEC at 10.709Gbps
- Other optical links, up to 11.1Gbps
More Information
| Packed | A Pair Packed | MSA | 10GBase-ER |
|---|---|---|---|
| Rate | 10G | Reach | 40km |
| Wavelength | BiDi | Interface | Dual LC |
| Fiber Cable | SMF | Compatible | 10Gtek offer Compatible Service |
| Temp. | 0 to 70°C (32 to 158°F) | Form Type | XFP |
| DOM Support | Yes | Max Data Rate | 11.1Gb/s |
| Brand | 10Gtek |
