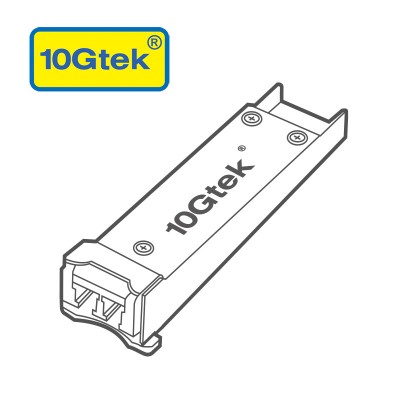

10Gtek's CWDM XFP transceiver series is designed for single-mode fiber serial optical data communications such as 10G Ethernet 10GBASE-ER/EW/ZR, SDH/SONET, and 10G Fibre Channel 1200-SM-LL-L.
There are 18 center wavelengths available from 1470 nm to 1610 nm, with each step 20nm. Maximum optical budget is 23dB.
The transceiver consists of two sections: The transmitter section consists of a directly modulated uncooled CWDM DFB/EML laser, driver signal conditioner.
The receiver section incorporates a PIN photodiode integrated with a trans-impedance preamplifier (TIA) or APD.
10Gtek offers CWDM XFP transceivers which reach distances from 10KM up to 80KM.
Features:
- Supports 9.95Gb/s to 11.1Gb/s bit rate
- 8-Wavelengths CWDM EML Transmitter from 1470nm to 1610nm, with 20nm added onto each level
- Maximum distance in Lab is 70km
- Duplex LC Connector
- Hot-Pluggable XFP Footprint
- Very Low TEC Power Consumption
- Compliant with XFP MSA
- Power Dissipation < 2.5W
- Operating Case Temperature Standard: 0ºC~+70ºC
Applications:
- SONET OC-192 ER-1, SDH STM L-64.1 at 9.953Gbps
- 10GBASE-LR/LW 10G Ethernet
- 1200-SM-LL-L 10G Fiber Channel
- 10GE over G.709 at 11.09Gbps
- OC192 over FEC at 10.709Gbps
More Information
| MSA | 10GBase-ZR | Rate | 10G |
|---|---|---|---|
| Reach | 80km | Interface | Dual LC |
| Fiber Cable | SMF | Compatible | 10Gtek offer Compatible Service |
| Temp. | 0 to 70°C (32 to 158°F) | Form Type | XFP |
| DOM Support | Yes | Max Data Rate | 11.09Gbps |
| Brand | 10Gtek |
