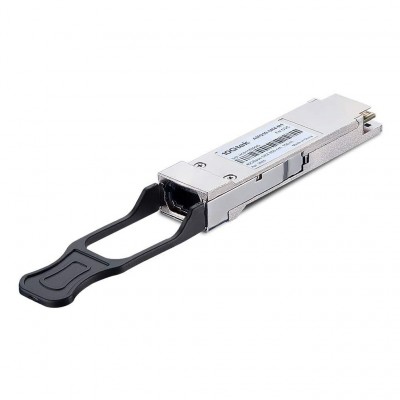

QSFP+ transceiver is compliant to MSA SFF-8436 40GBase-SR4 and IEEE 802.3ba.
This is a parallel 40Gb/s Quad Small Form-factor Pluggable (QSFP+) optical module, terminated with MPO or MTP Connectors.
40G SR4 QSFP+ module supports 100 meters transmission over OM3 MMF or 150 meters transmission over OM4 MMF.
To better ensure the performance, the following 10Gtek-made MPO/MTP cables are recommended to be used for connecting the QSFP+ transceivers.
10Gtek's QSFP+ transceivers pass the following IOL Interoperability test with most major brands for both OS and hardware compatibility.
UNH-IOL Interoperability Test Report:
- UNH-IOL_10GTEK_ONSI_Test_Report_Cumulus_3.5_Wedge100S_10GTEK-AMQ10-SR4-M1.pdf
- UNH-IOL_10GTEK_ONSI_Test_Report_Cumulus_3.5_Edge_Core-7712_10Gtek_AMQ10-SR4-M1.pdf
Features:
- 40GBase-SR4
- Data Rate: 40G, QDR
- Wavelength: 850-nm
- Interface: 8/12-fiber MPO/MTP connector
- Ratch1: up to 100 meters QOM3 MMF
- Ratch2: up to 150 meters OOM4 MMF
- Fiber Type: OM3/OM4 MMF
- Power Consumption: <1.5W
- Excellent EMI performance
- Temp. Range(℃): 0~70
Applications:
- Ethernet 10G, 40G
- InfiniBand 4X SDR, DDR, QDR
- Fiber Channel 10G, 40G
- Rapid IO
More Information
| CPN | AMQ10-SR4-M1 | Custom SKU | AMQ10-SR4-M1 |
|---|---|---|---|
| Model | AMQ10-SR4-M1 | Compatible Option | Intel |
| Compatible Model | E40GQSFPSR | MSA | 40GBase-SR4 |
| Rate | 40G | Reach | 100m@OM3 |
| Reach1 | 150m@OM4 | Wavelength | 850nm |
| Interface | MPO/MTP | Fiber Cable | MMF |
| Compatible | 10Gtek offer Compatible Service | Temp. | 0 to 70°C (32 to 158°F) |
| Form Type | QSFP+ | DOM Support | Yes |
| Max Data Rate | 44.8Gbps | Brand | 10Gtek |
