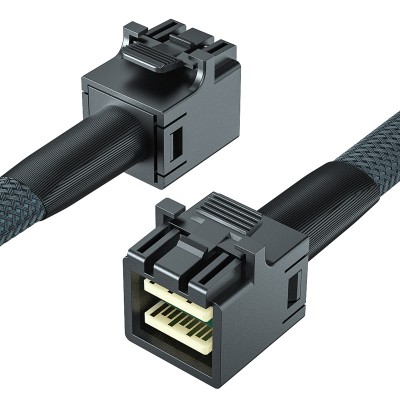

10Gtek's High Density (HD) MiniSAS SFF-8643 Internal cable assemblies are available for SAS 2.1, 6Gb/s and SAS 3.0, 12Gb/s specification.
Like the external HD MiniSAS, this new connector uses less PCB real estate and allows higher port density for internal hosts and devices.
Hybrid versions of these new cables will allow for a smooth transition from 6Gb to 12Gb.
Features
- Length: Available from 0.5~1 meters
- Wire Size (AWG): 30
- Connector A: Internal Mini SAS HD (SFF-8643)
- Connector B: Internal Mini SAS HD (SFF-8643)
- Impedance: 100 Ohms
- Data Rate: 12.00 Gb/s
Applications
- Fibre Channel
- InfiniBand
- SAS 2.1 (Serial Attached SCSI) compliant
- RoHS Compliant
More Information
| Custom SKU | CAB-8643/8643-P | CPN | CAB-8643-P |
|---|---|---|---|
| Model | CAB-8643/8643-P | Rate | 12G |
| b111_rate1 | multi-rate | インターフェース | SFF-8643 to SFF-8643 |
| Spec. P/A | Passive | Spec. Impedance | 100 ohm |
| Spec. AWG | 30 | Brand | 10Gtek |
| Additional Information | available for SAS 2.1 6Gb/s and SAS 3.0 12Gb/s specification |
