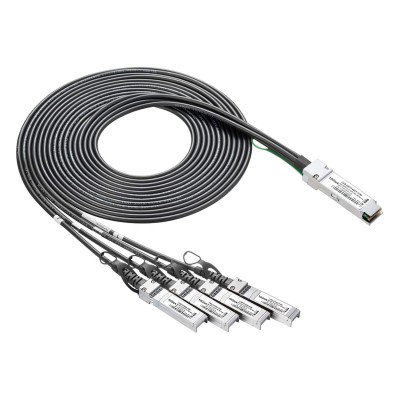

QSFP+ to 4x SFP+ breakout copper DAC cable, it's an application for the link with 40Gb/s rate switch to 4 upstream 10Gb/s device. bridge the gap between your 10G and 40G capable switches/host adapters. This breakout cable compliant to SFP+ & QSFP MSA, supports both 10G/40G Ethernet standards. Notice: 1. Our 40G QSFP+ DAC could not support "Aruba (HP Provurve)" devices.
Features:
- 0.5~5 meters
- 10Gb/s per channel
- 40GBase-CU4, QDR
- QSFP+ to 4 SFP+ Breakout
- Connector A: 40G QSFP+ Connector (SFF-8436)
- Connector B: (4) 10G SFP+ Connectors (SFF-8431)
- Pasive
- 30/28/26AWG
Applications:
- Ethernet 10G, 40G
- InfiniBand 4X SDR, DDR, QDR
- Fiber Channel 10G, 40G
- Rapid IO
- Rack-to-Rack, Shelf-to-Shelf Interconnect
- TOR (Top of Rack)
More Information
| Custom SKU | CAB-Q10/4S-P | Model | CAB-Q10/4S-P |
|---|---|---|---|
| Spec. AWG | 30/28/26 | b100_msa | 40GBase-CU4 |
| Rate | 40G | b111_rate1 | multi-rate |
| インターフェース | QSFP+ to (4) SFP+ | Spec. P/A | Passive |
| Spec. E/M | EEPROM | Spec. Impedance | 100 ohm |
| Brand | 10Gtek |
