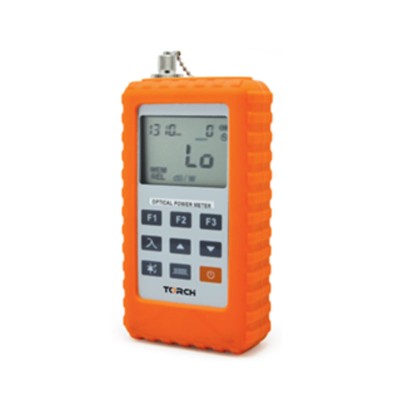

Optic Power Meter WG-OPM-TQ110 series with a chip microcomputer control and the large-screen graphics LCD, it can provide precision measurement from 850 to 1650nm wavelength ranges and measuring range including -70dBm to +10dBm, -50dBm to +26dBm.
WG-OPM-TQ110 power meter is quite essential device both to construction and maintenance in optic fiber communication, CATV and FTTH.
Features
- Portable design
- FC/PC adapter (SC/ST customized)
- High quality measuring
- 1000 data storage
- Available for SM & MM fibers
- Low power consumption,200 hrs working
- Available for FTTH optic power test
Applications
- Fiber optic production and research
- Testing and maintenance of fiber-optic network
- Teaching and testing in optical communication
Specifications
| Type | OPM-TQ110 | OPM-TQ120 |
| Detector | InGaAs | |
| Interface | FC/PC(Optional SC,ST) | |
| Measurement Range | -50~+26dB | -70~+10dB |
| Measurement Wavelength | 850/1300/1310/1490/1550/1650nm | |
| Precision&Resolution | ±0.01dB/0.01dBm | |
| Storage | 1000 | |
| Power | Three AA Batteries | |
| Working Time | >200hrs | |
| Volume | 155x76x38mm | |
| Standard Accessories | Fault Locator(1mW 3~5km); 3 AA Batteries; Carrying Bag; Manual | |
| Optional | Fault Locator(5mW 8~10km) | |
More Information
| Model | OPM-TQ110 | Brand | 10Gtek |
|---|
