800G OSFP to 800G/400G QSFP-DD or 100G QSFP28 Adapter (ODA) Module

Product description:

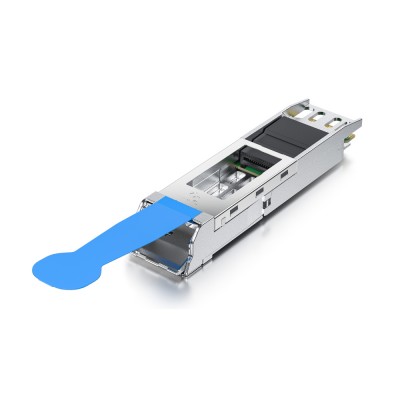

10Gtek ODA-800 is a OSFP to QSFP-DD Adaptor Module that offers 800 Gigabit Ethernet transfer to 800G, 400G, 100G or 40 Gigabit Ethernet connectivity for OSFP only. It allows smooth and cost-effective migration to 800 Gigabit Ethernet by providing an option to use 800G or lower-speed QSFP or enhanced QSFP-DD module in empty OSFP ports when the other end of the network is running at lower speeds.

Features:

• Compliant with IEEE802.3df (800GBASE-CR8)
• Compliant with IEEE802.3ck (400GBASE-CR8)
• Compliant with IEEE802.3cd (400GBASE-CR8)
• Compliant with IEEE802.3bj (100GBASE-CR4)
• Compliant with IEEE802.3ba (40GBASE-CR)
• Data rates : 56Gbps/Lane(or 112Gbps/Lane)
• I/O Connector designed for high speed differential signal applications
• Connector Compliant with OSFP Octal Small form factor Pluggable module - OSFP MSA & QSFP-DD MSA Standard
• Low Power Consumption < 0.5W
• RoHS complian

Applications:

• Storage, Switch, & RAID Systems
• High-Performance Computing (HPC)
• Network Interface Cards (NIC's)
• Telecommunication equipment
• Data center and enterprise storage systems
