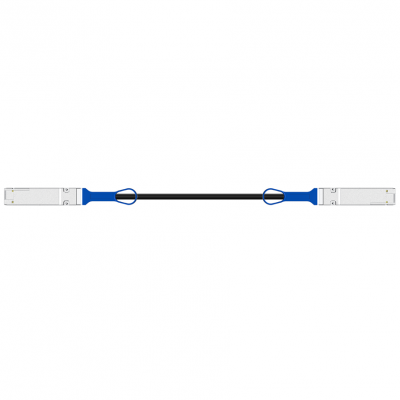

800G QSFP-DD to QSFP-DD Passive Twinax Direct Attach Copper (DAC) Cable, 0.5~3 meter

The 10Gtek QD-8XND-PxM 800G Twinax DAC is a high-speed cable comprised of passive copper cables with 800G QSFP-DD connectors. 800G QSFP-DD DAC is a cost-effective alternative solution to 800G fiber optic products, quite suitable for short-range 800G Ethernet applications.

10Gtek 800G DAC is compliant with IEEE 802.3CK and QSFP-DD Multi-Source Agreement (MSA). The 800G QSFP-DD direct attach copper cables to enable high speed and reduced power requirements for data centers at a cost-effective price. Rigorous cable testing requirement ensures cables with high performance and superior durability.

Features:

• QSFP-DD800 MSA
• IEEE802.3ck 800G-PAM4
• Each cable component can support 8-channel high-speed transmission links
• Channel transmission rate 112Gpbs, total transmission rate is 800Gbps
• Backward compatible with 25G NRZ and 50G PAM4
• 28AWG-32AWG for option
• Outer jacket: PET woven/metal woven
• EEPROM content can be customized
• DAC length can support up to 26AWG-2.0M (800G Ethernet)
