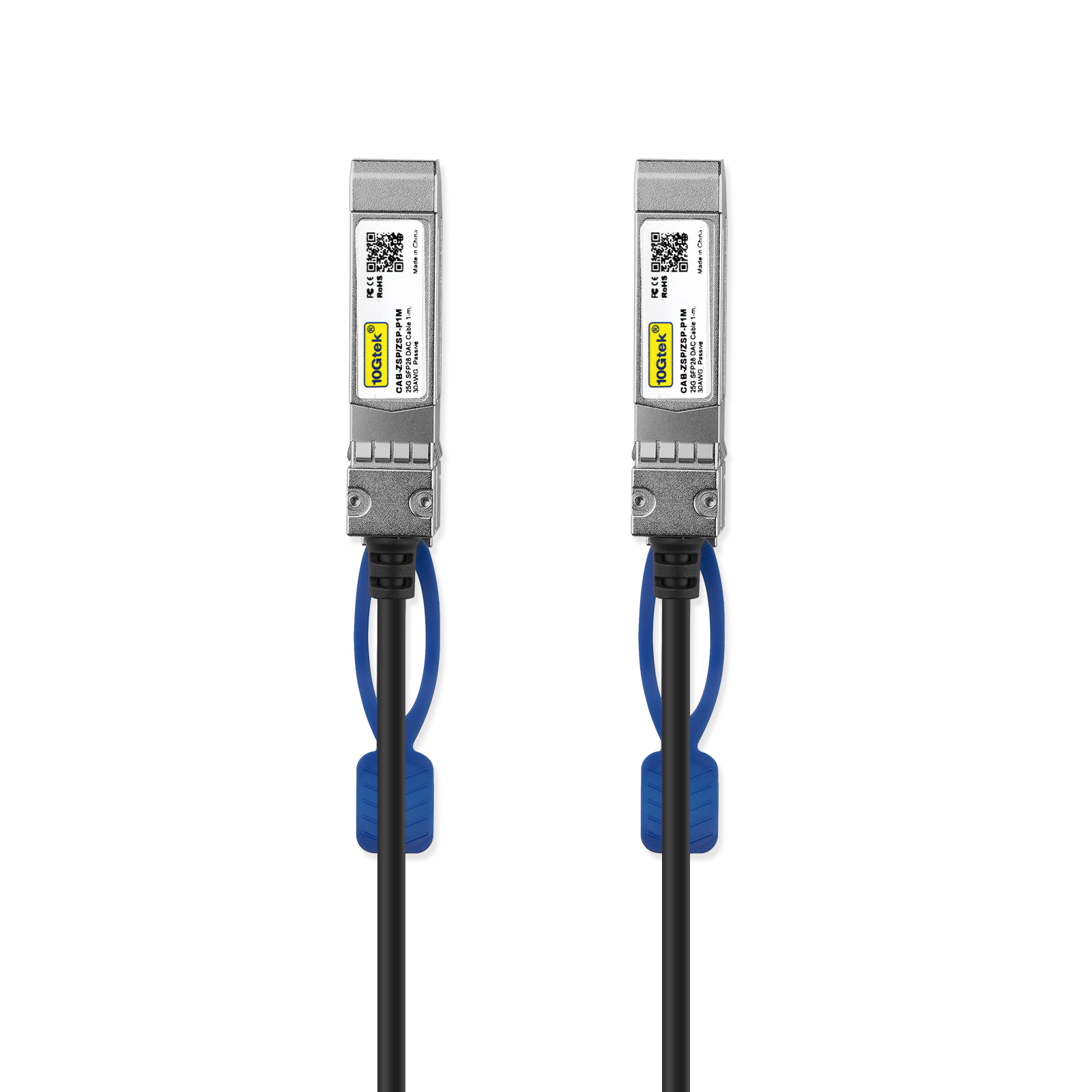

SFP28 DAC cable based on IEEE 802.3by and MSA SFF-8402, supports 10G~25Gb/s multi-rate communication and application in 10/25GE, 16/32FC. SFP28 Copper twinax cables are suitable for very short distances and offer a highly cost-effective way to connect within racks and across adjacent racks.
SFP28 DAC cable which replaces two optical modules and a connectorized optical fiber with a twinaxial copper cable assembly.
AWG(American wire gauge), decreasing gauge numbers denote Increasing wire diameters, the transmission will be more longer, 10Gtek offers passive SFP28 twinax cables in lengths of 0.5~3 meters by 30AWG and 4~5 meters by 26AWG.
Features:
- 25GBase-CU
- Length: 0.5~5 meters
- 2-pair differential twinax cable
- Impedance: 100-ohm
- Passive
- 30/28/26 AWG
- EEPROM or MCU for I2C which can be customized
- Compliant to SFP28 MSA
- Low power consumption
- Excellent EMI performance
- RoHS Compliant
- Temp. Range(℃): 0~70
Applications:
- 25G Ethernet
- 10G Ethernet
- 16/32FC
More Information
| Custom SKU | CAB-ZSP/ZSP-P | CPN | CAB-ZSP/ZSP-P1.5M |
|---|---|---|---|
| Model | CAB-ZSP/ZSP-P1.5M | Compatible | Mellanox |
| Compatible Model | MCP2M00-A01AE30N | Spec. AWG | 30/28/26 |
| MSA | 25GBase-CU | Rate | 25G |
| Max Data Rate | 25Gbps | Interface | SFP28 to SFP28 |
| Spec. P/A | Passive | Spec. E/M | MCU or EEPROM |
| Spec. Impedance | 100 ohm | Brand | 10Gtek |
