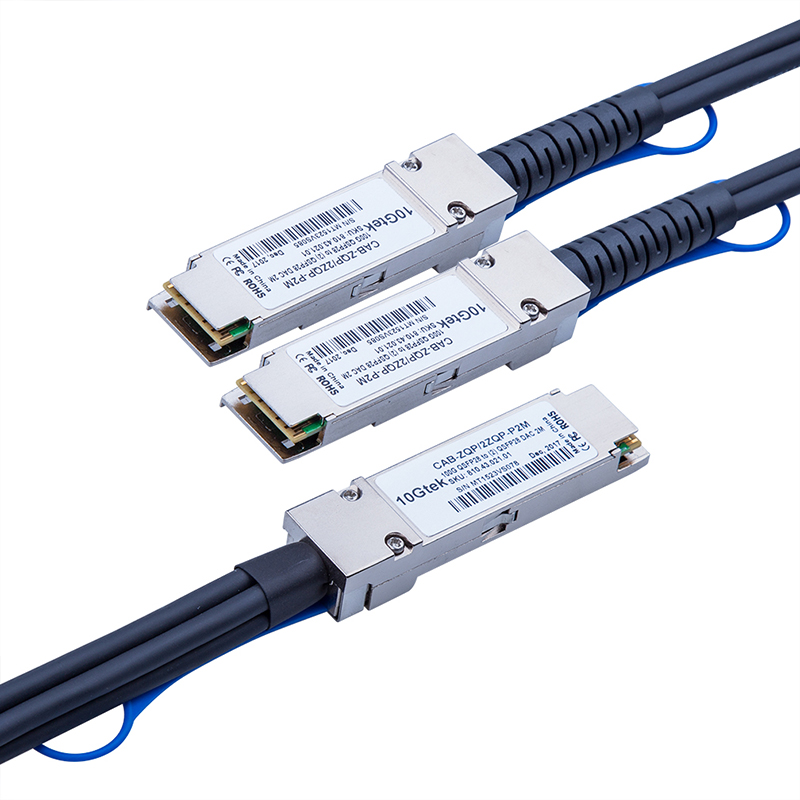

10Gtek's 100G QSFP28 to 2x 50G QSFP28 Copper Breakout Cable application is a "Y" assembly which is a hybrid transition from a QSFP on one terminal to two individual QSFP on the other.
The QSFP28 to 2x 50G QSFP Break-out DAC Cable, the terminal of 50G QSFP28 offers channel 1 and channel 2, each operating at up to 28Gbps.
Features:
- 100G to 2x 50G
- Length: 0.5~3 meters
- 4ch QSFP28 to（2）2ch QSFP28 Y Cable
- Passive
- MCU
- 30/28/26AWG
- Low power consumption
- Excellent EMI performance
- Temp. Range(℃): 0~70
Applications:
- Ethernet 100G, 40G
- InfiniBand 4X SDR, DDR, QDR, EDR, FDR
- Fiber Channel 10G, 40G, 100G
- Rack-to-Rack, Shelf-to-Shelf Interconnect
- TOR (Top of Rack)
Compliant:
- 100G Ethernet (IEEE 802.3bj)
- InfiniBand EDR
- SFF-8665
- RoHS compliant
More Information
| Custom SKU | CAB-ZQP/2ZQP-P | Model | CAB-ZQP/2ZQP-P |
|---|---|---|---|
| Compatible | Cohesity | Spec. AWG | 30/28/26 |
| MSA | 100GBase-CR4 | Rate | 100G |
| Max Data Rate | 100Gbps | Interface | QSFP28 to (2) 50G |
| Spec. P/A | Passive | Spec. E/M | MCU |
| Spec. Impedance | 100 ohm | Brand | 10Gtek |
