    2m(7ft) 100G QSFP28 to (2) 50G Twinax Copper Passive DAC Cable Mellanox Ethernet MCP7H00-G002R30N Compatible
    Loading...

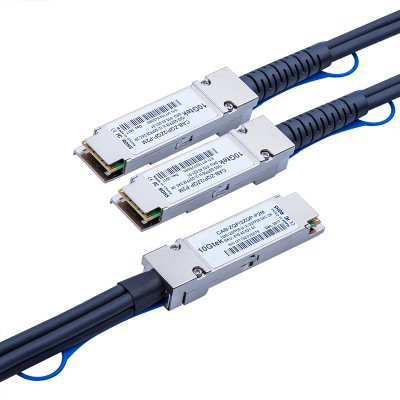

    2m(7ft) 100G QSFP28 to (2) 50G Twinax Copper Passive DAC Cable Mellanox Ethernet MCP7H00-G002R30N Compatible

    #6542
    SKU:CAB-ZQP/2ZQP-P
    0 Question(s)
    As low as $52.99

    Maximum 120 characters

    ● 100G to 2x 50G
    ● Length: 0.5~3 meters
    ● 4ch QSFP28 to(2)2ch QSFP28 Y Cable
    ● Passive
    ● 30/28/26AWG

    10Gtek's 100G QSFP28 to 2x 50G QSFP28 Copper Breakout Cable application is a "Y" assembly which is a hybrid transition from a QSFP on one terminal to two individual QSFP on the other.
    The QSFP28 to 2x 50G QSFP Break-out DAC Cable, the terminal of 50G QSFP28 offers channel 1 and channel 2, each operating at up to 28Gbps.

    Features:

    • 100G to 2x 50G
    • Length: 0.5~3 meters
    • 4ch QSFP28 to(2)2ch QSFP28 Y Cable
    • Passive
    • MCU
    • 30/28/26AWG
    • Low power consumption
    • Excellent EMI performance
    • Temp. Range(℃): 0~70

    Applications:

    • Ethernet 100G, 40G
    • InfiniBand 4X SDR, DDR, QDR, EDR, FDR
    • Fiber Channel 10G, 40G, 100G
    • Rack-to-Rack, Shelf-to-Shelf Interconnect
    • TOR (Top of Rack)

    Compliant:

    • 100G Ethernet (IEEE 802.3bj)
    • InfiniBand EDR
    • SFF-8665
    • RoHS compliant

    More Information

    Custom SKUCAB-ZQP/2ZQP-P ModelCAB-ZQP/2ZQP-P
    CompatibleMellanox Ethernet Compatible ModelMCP7H00-G002R30N
    Spec. AWG30/28/26 MSA100GBase-CR4
    Rate100G Max Data Rate100Gbps
    InterfaceQSFP28 to (2) 50G Spec. P/APassive
    Spec. E/MMCU Spec. Impedance100 ohm
    Brand10Gtek
