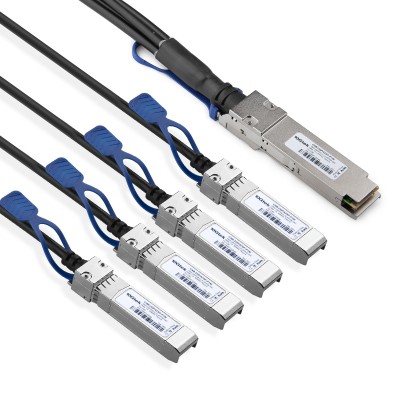

100G QSFP28 to (4x) SFP28 Twinax Copper Passive DAC Cable 0.5~3 meter

100G QSFP28 to 4x 25G SFP28 Copper Breakout Cable application is "break-out" DAC assembly which is a hybrid transition from a QSFP28 on one terminal to four individual SFP28 on the other. The QSFP28 to four parallel bi-directional channels each operating at up to 25Gbps.

Features:

• 100G QSFP28 to 4x 25G SFP28 Breakout
• Length: 0.5~5 meters
• Passive
• MCU or EEPROM
• 30/28/26AWG
• Low power consumption
• Excellent EMI performance
• Temp. Range(℃): 0~70

Applications:

• Ethernet 100G, 25G
• InfiniBand 4X SDR, DDR, QDR, EDR, FDR
• Fiber Channel 25G, 100G
• Rack-to-Rack, Shelf-to-Shelf Interconnect
• TOR (Top of Rack)

Compliant:

• 100G Ethernet (IEEE 802.3bj)
• InfiniBand EDR
• SFF-8665
• RoHS compliant
