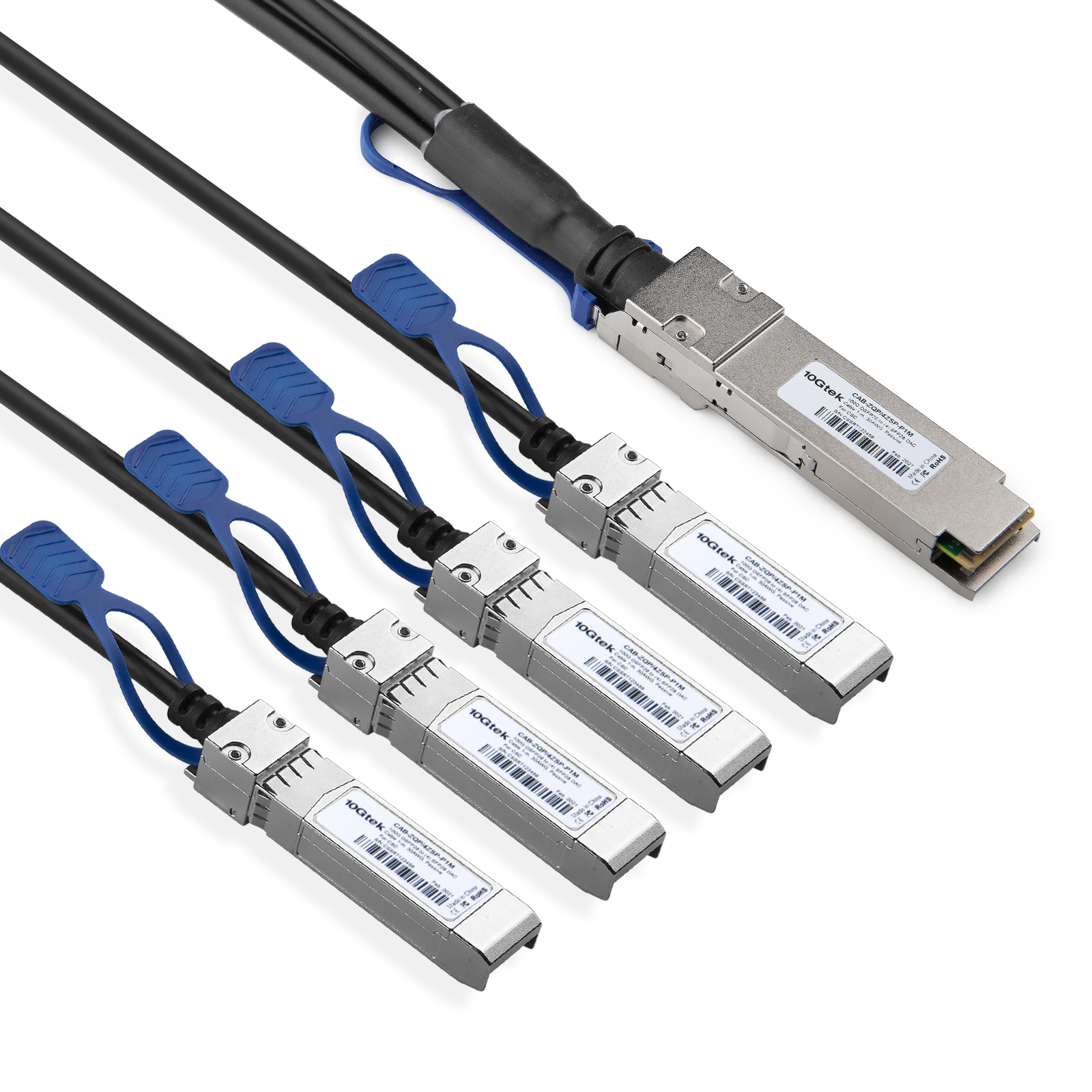

100G QSFP28 to 4x 25G SFP28 Copper Breakout Cable application is "break-out" DAC assembly which is a hybrid transition from a QSFP28 on one terminal to four individual SFP28 on the other. The QSFP28 to four parallel bi-directional channels each operating at up to 25Gbps.
Features:
- 100G QSFP28 to 4x 25G SFP28 Breakout
- Length: 0.5~5 meters
- Passive
- MCU or EEPROM
- 30/28/26AWG
- Low power consumption
- Excellent EMI performance
- Temp. Range(℃): 0~70
Applications:
- Ethernet 100G, 25G
- InfiniBand 4X SDR, DDR, QDR, EDR, FDR
- Fiber Channel 25G, 100G
- Rack-to-Rack, Shelf-to-Shelf Interconnect
- TOR (Top of Rack)
Compliant:
- 100G Ethernet (IEEE 802.3bj)
- InfiniBand EDR
- SFF-8665
- RoHS compliant
More Information
| Custom SKU | CAB-ZQP/4ZSP-P | CPN | CAB-ZQP/4ZSP-P1M-30 |
|---|---|---|---|
| Model | CAB-ZQP/4ZSP-P | Compatible | Cisco |
| Compatible Model | QSFP-4SFP25G-CU1M | Spec. AWG | 30/28/26 |
| MSA | 100GBase-CR4 | Rate | 100G |
| Max Data Rate | 100Gbps | Multi Rate | multi-rate |
| Interface | QSFP28 to (4) SFP28 | Spec. P/A | Passive |
| Spec. E/M | MCU or EEPROM | Spec. Impedance | 100 ohm |
| Brand | 10Gtek |
