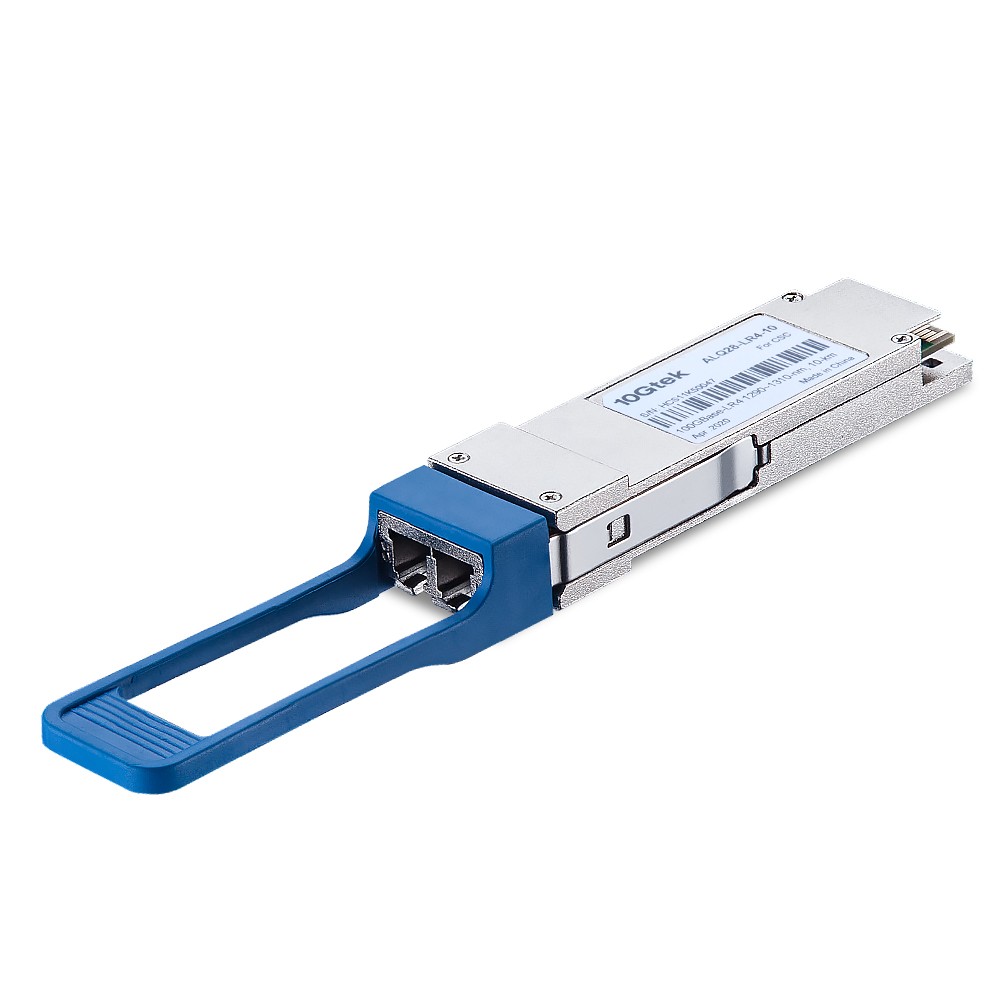

10Gtek's QSFP28 LR4 is a 100Gb/s transceiver module designed for optical communication applications compliant to 100GBASE-LR4 of the IEEE P802.3ba standard.
The product is designed with the form factor, optical/electrical connection and digital diagnostic interface according to the QSFP+ Multi-Source Agreement (MSA).
It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.
UNH-IOL Interoperability Test Report:
UNH-IOL_10GTEK_ONSI_Test_Report_Cumulus_3.5_Wedge100S_10GTEK_ALQ28-LR4-10.pdf
UNH-IOL_10GTEK_ONSI_Test_Report_Cumulus_3.5_Edge_Core-7712_10Gtek_ALQ28-LR4-10.pdf
Features:
- Hot pluggable QSFP28 MSA form factor
- Compliant to IEEE 802.3ba 100GBase-LR4
- Up to 10km reach for G.652 SMF
- Single +3.3V power supply
- Operating case temperature: 0~70ºC
- Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)
- Receiver: 4x25Gb/s PIN ROSA
- 4x28G Electrical Serial Interface (CEI-28G-VSR)
- Maximum power consumption 4.0W
- Duplex LC receptacle
- RoHS-6 compliant
Applications:
- Ethernet 100G
- Client-side 100G Telecom connections
More Information
| CPN | ALQ28-LR4-10 | Custom SKU | ALQ28-LR4-10 |
|---|---|---|---|
| Model | ALQ28-LR4-10 | Compatible | Intel |
| Compatible Model | E100GQSFP28LRX | MSA | 100GBase-LR4 |
| Rate | 100G | Reach | 10km |
| Wavelength | 1290~1310nm | Interface | Dual LC |
| Fiber Cable | SMF | Compatible | 10Gtek offer Compatible Service |
| Temp. | 0 to 70°C (32 to 158°F) | Form Type | QSFP28 |
| DOM Support | Yes | Max Data Rate | 100Gb/s |
| Brand | 10Gtek |
