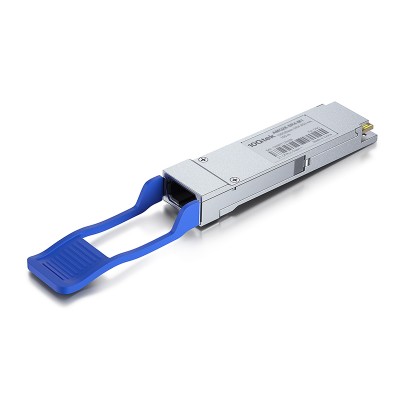

10Gtek’s AMQ28-IR4-02 is a pluggable, four-channel QSFP28 optical transceiver with bi-directional signal transmission and aggregate 100-Gbps bandwidth for 100G Ethernet. It features the Parallel Single Mode 4 Lane (PSM4) and transmission range of up to 2 km over SMF.
Features:
- Compliant with 100G Ethernet IEEE 802.3bm
- Compliant to SFF-8665 (QSFP28 Solution) Revision 1.8
- Supports 100 Gbps data rate links of up to 1.4 km via single mode fiber
- Low power consumption of max 3.5W
- Hot pluggable electrical interface
- Using standard 12-lane optical fiber with MPO pluggable optical connector
- 0 to 60°C operating temperature
- RoHS-6 Compliant (lead-free)
Applications:
- Ethernet 100G
- HPC Interconnects
More Information
| CPN | AMQ28-IR4-02 | Custom SKU | AMQ28-IR4-02 |
|---|---|---|---|
| Model | AMQ28-IR4-02 | MSA | 100GBase-PSM4 |
| Rate | 100G | Reach | 1.4km |
| Wavelength | 1310nm | Interface | MPO/MTP |
| Fiber Cable | SMF | Compatible | 10Gtek offer Compatible Service |
| Temp. | 0 to 70°C (32 to 158°F) | Form Type | QSFP28 |
| DOM Support | Yes | Max Data Rate | 100Gbps |
| Brand | 10Gtek |
