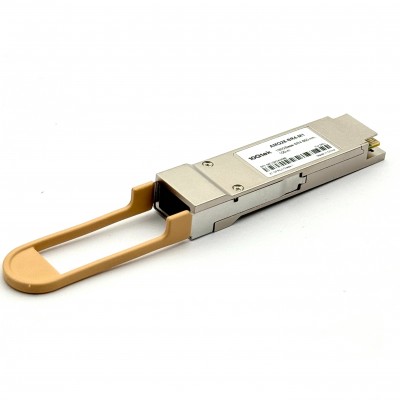

10Gtek's QSFP28 SR4 is a parallel 100Gb/s Quad Small Form-factor Pluggable (QSFP28) optical module. It provides increased port density and total system cost savings.
The QSFP28 full-duplex optical module offers 4 independent transmit and receive channels, each capable of 25Gb/s operation for an aggregate data rate of 100Gb/s on 100 meters of OM4 multi-mode fiber.
The product is designed with the form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity, and EMI interference.
The module offers very high functionality and feature integration, accessible via a two-wire serial interface.
UNH-IOL Interoperability Test Report:
UNH-IOL_10GTEK_ONSI_Test_Report_Cumulus_3.5_Wedge100S_10GTEK_AMQ28-SR4-M1.pdf
UNH-IOL_10GTEK_ONSI_Test_Report_Cumulus_3.5_Edge_Core-7712_10Gtek_AMQ28-SR4-M1.pdf
Features:
- 100GBase-SR4
- Data Rate: 100G
- Wavelength: 850-nm
- Reach1: up to 70 meters @ OM3 MMF
- Reach2: up to 100 meters @ OM4 MMF
- Fiber Type: OM3/OM4 MMF
- Interface: MTP/MPO Connector
- Power Consumption: <3.5W
- Compliant to IEEE 802.3bm
- Temp. Range(℃): 0~70
Applications:
- Ethernet 100G
- Rack to Rack
- Data Center
More Information
| CPN | AMQ28-SR4-M1 | Custom SKU | AMQ28-SR4-M1 |
|---|---|---|---|
| Model | AMQ28-SR4-M1 | Compatible | No Requirements |
| MSA | 100GBase-SR4 | Rate | 100G |
| Reach | 70m@OM3 | Reach1 | 100m@OM4 |
| Wavelength | 850nm | Interface | MPO/MTP |
| Fiber Cable | MMF | Compatible | 10Gtek offer Compatible Service |
| Temp. | 0 to 70°C (32 to 158°F) | Form Type | QSFP28 |
| DOM Support | Yes | Max Data Rate | 103.1 Gbps |
| Brand | 10Gtek |
