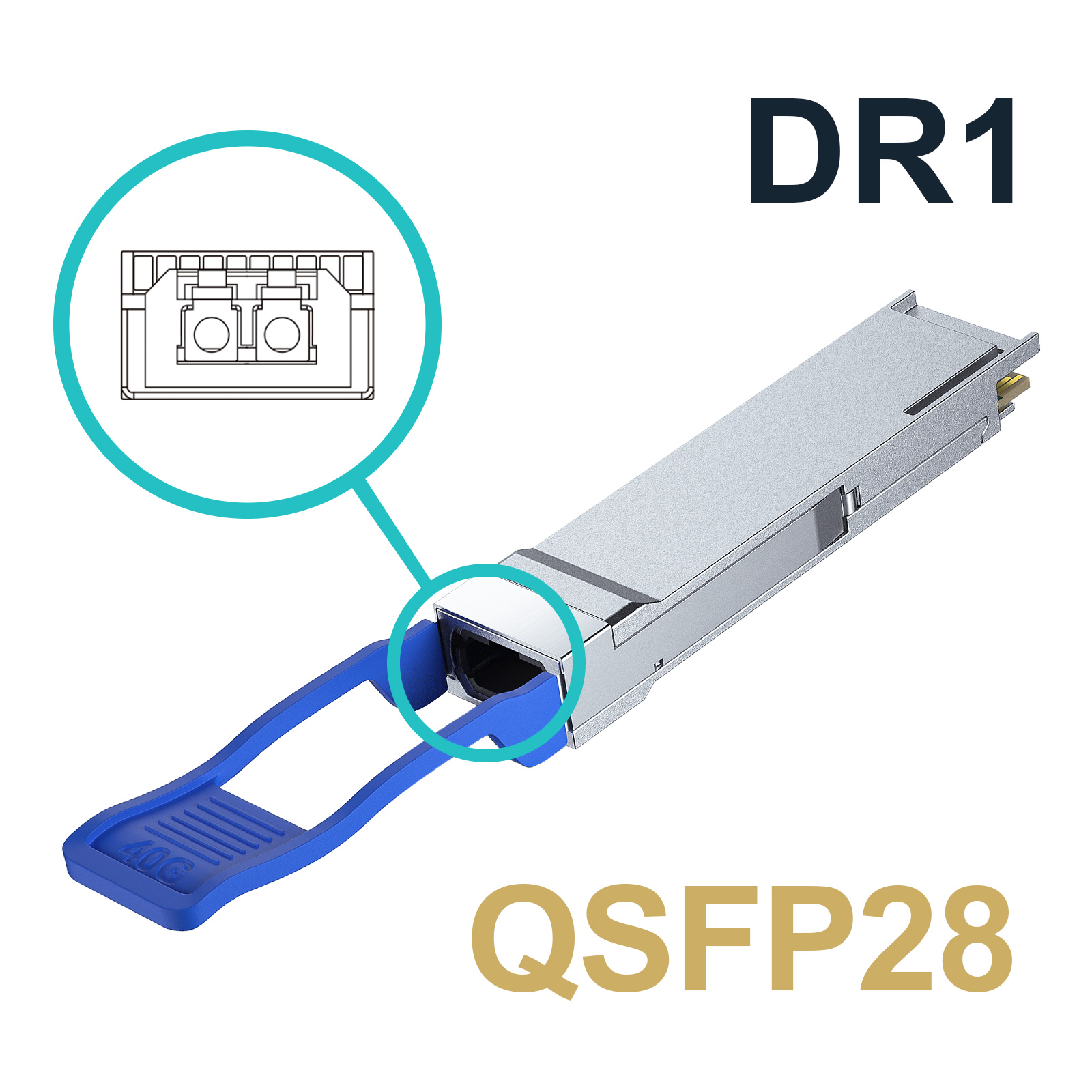

Features
● Supports 100Gbps
● IEEE802.3cd 100GBASE-DR Specification Compliant
● Single 3.3V Power Supply
● Power dissipation < 4.5W
● Up to 500m over SMF with FEC
● QSFP28 MSA Compliant
● SFF-8636 Rev 2.10a Compliant
● 4x25G electrical interface
● LC duplex connector
● Commercial case temperature range of 0℃ to 70℃
● I2C interface with integrated Digital Diagnostic Monitoring
● Safety Certification: TUV/UL/FDA
● RoHS Compliant
Applications
● 100G Ethernet
● Data center
More Information
| CPN | Q100-DR1-L2-X2 | Custom SKU | Q100-DR1-L2-X2 |
|---|---|---|---|
| Model | Q100-DR1-L2-X2 | Compatible | OEM code |
| Rate | 100G | Interface | Dual LC |
| Compatible | 10Gtek offer Compatible Service | Temp. | 0 to 70°C (32 to 158°F) |
| Form Type | QSFP28 | Max Data Rate | 100GbE |
| Brand | 10Gtek |
