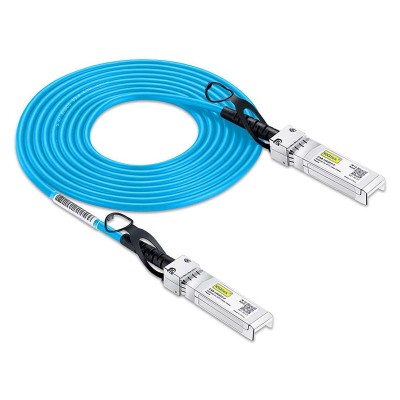

    10G SFP+ to SFP+ Twinax Copper Passive DAC Cable 0.5~3 meter(Blue)
    Loading...

    10G SFP+ to SFP+ Twinax Copper Passive DAC Cable 0.5~3 meter(Blue)

    #6236
    SKU:CAB-10GSFP-P-30-Blue
    0 Question(s)
    As low as $10.00

    Maximum 120 characters

    ● 10GBase-CU
    ● Length: 0.5~3 meters
    ● 2-pair differential twinax Cable
    ● Passive
    ● EEPROM
    ● 30AWG

    ● 10Gtek offer Compatible Service

    Colored SFP+ DAC cables are available NOW!
    SFP+ DAC (Direct Attach Copper) passive twinax cable is suitable for very short distances transmission and offers a highly cost-effective and low power solution to connect within racks and across adjacent racks.
    SFP+ twinax passive cable allows for a serial data transmission up to 10.3Gb/s, which is a low cost choice for very short reach applications of 10GbE or 1-8G Fiber Channel.
    SFP+ DAC which replaces two optical modules and a connectorized optical fiber with a twinaxial copper cable assembly offers the higher density, lower cost, and lower power 10 Gigabit Ethernet solution than other cable types such as 10GBASE-CX4 and CAT6/CAT6A 10GBASE-T. AWG(American wire gauge), decreasing gauge numbers denote Increasing wire diameters, the transmission will be more longer, 30AWG for 0.5~3 meters application, the price is better than 24AWG Cable.

    Notice:

    • When link "Intel NIC" with over 3 meters SFP+ DAC Passive, you need to choose 24AWG, otherwise there will exist instability (1 or 2 meters, 30AWG is ok).
    • When link "Cisco switch" with 5 meters SFP+ DAC Passive, you could also choose 30AWG to save cost (because Cisco has enough compensation in the switch’s chipset ).
    • When link "Aruba (HP Provurve) switch",the hardware is different with others.
    • The compatible for "Brocade CNA", please choice the Active SFP+ DAC.

    Features:

    • 10GBase-CU
    • SFP+ to SFP+ Connetor
    • AWG30
    • Length: 0.5~3 meters
    • 2-pair differential twinax cable
    • Impedance: 100-ohm
    • EEPROM I2C (MCU: customized)
    • Compliant to SFP MSA
    • Low power consumption
    • Excellent EMI performance
    • RoHS Compliant
    • Temp. Range(℃): 0~70 (Industrial Temp.: customized)

    Applications:

    • 1-8G Fiber Channel
    • 1-10G Gigabit Ethernet
    • Networking, Storage, Telecommunications
    • Hub, Switches, Routers, Servers, Network Interface Card(NICs)

    More Information

    Custom SKUCAB-10GSFP-P-30-Blue ModelCAB-10GSFP-P-30-Blue
    Spec. AWG30 MSA10GBase-CU
    Rate10G InterfaceSFP+ to SFP+
    Spec. P/APassive Spec. E/MEEPROM
    Spec. Impedance100 ohm Brand10Gtek
