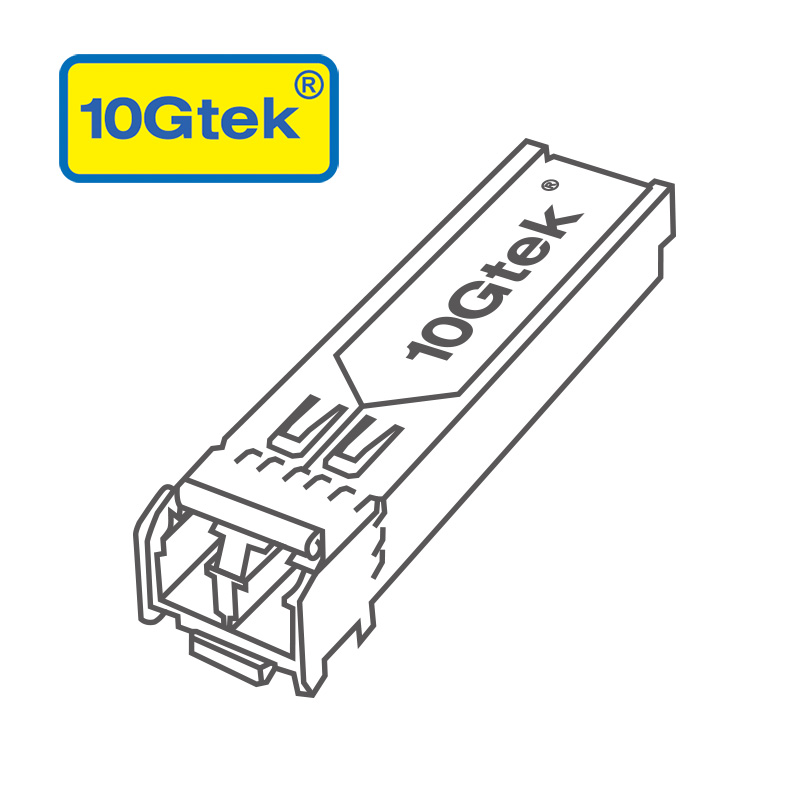

10Gtek's AXSxx-192-xx series optical transceiver is designed for fiber communications application such as 10G Ethernet, which fully compliant with the specification of SFP+ MSA SFF-8431. This module is designed for single mode fiber and operates at a nominal wavelength of CWDM wavelength. There are ten center wavelengths available from 1270nm to 1450nm, with each step 20nm. The module is with the SFP+ connector to allow hot plug capability. The single 3.3V power supply is needed. The optical output can be disabled by LVTTL logic high-level input of TX_DIS. Loss of signal (RX_LOS) output is provided to indicate the loss of an input optical signal to the receiver. This module provides digital diagnostic functions via a 2-wire serial interface as defined by the SFF-8472.
