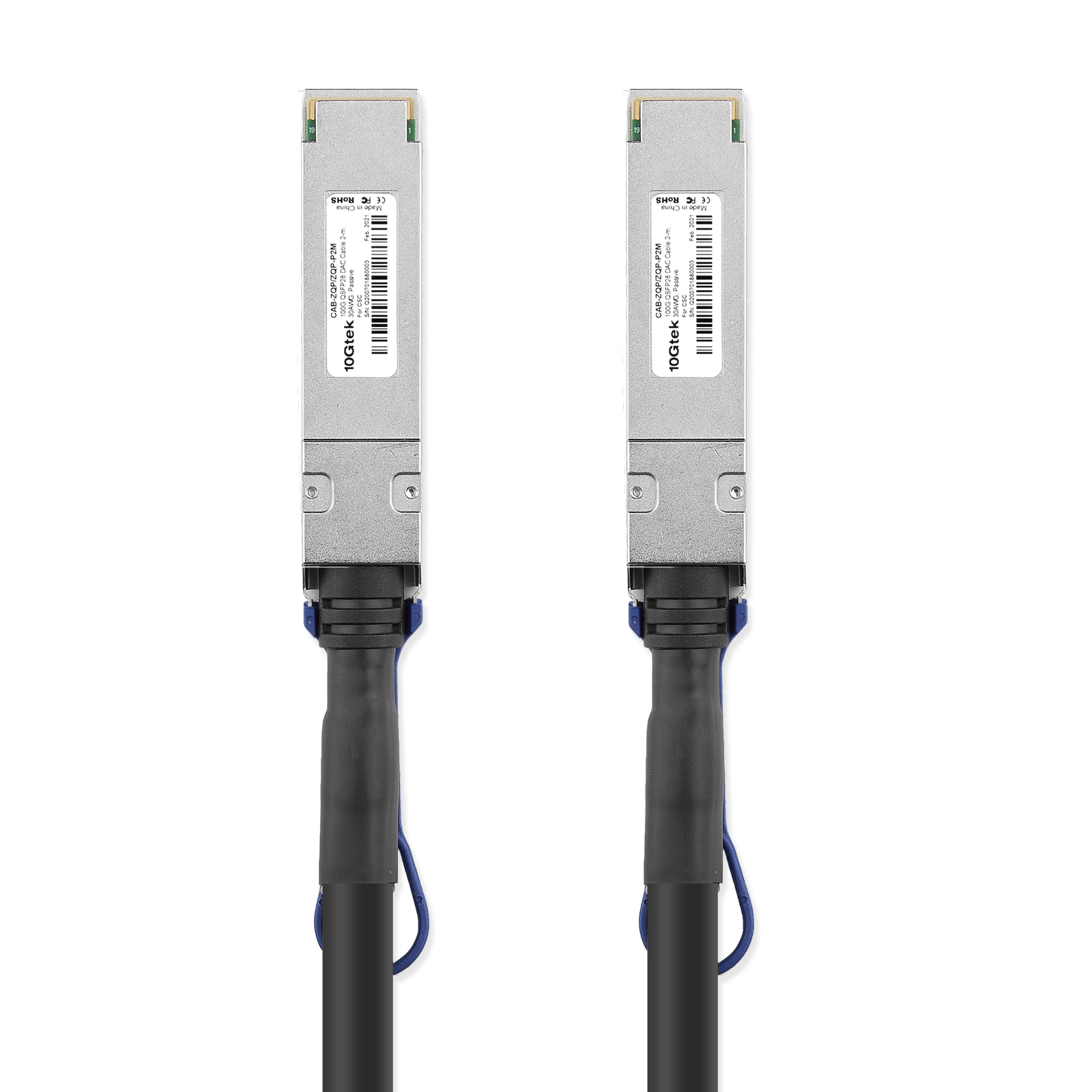

1m(3ft) 100G QSFP28 to QSFP28 Twinax Copper Passive DAC Cable Extreme 10411 Compatible

100Gb/s QSFP28 DAC, 8 pair differential copper pairs providing four data transmission channels at speeds up to 28Gbps per channel, and meets 100G Ethernet (4 x 25Gb/s) and InfiniBand EDR (Enhanced Data Rate) requirements.
These 100G copper cable assembly features a unique construction with individually wrapped Twinax pairs, resulting in low insertion loss and low crosstalk.

Features:

• 100GBase-CR4
• Length: 0.5~5 meters
• 8-pair differential twinax Cable
• Passive
• MCU
• 30/28/26AWG
• Low power consumption
• Excellent EMI performance
• Temp. Range(℃): 0~70

Applications:

• Ethernet 100G, 40G
• InfiniBand 4X SDR, DDR, QDR, EDR, FDR
• Fiber Channel 10G, 40G, 100G
• Rack-to-Rack, Shelf-to-Shelf Interconnect
• TOR (Top of Rack)

Compliant:

• 100G Ethernet (IEEE 802.3bj)
• InfiniBand EDR
• SFF-8665
• RoHS compliant
