200G QSFP-DD to (2x) 100G QSFP28 Twinax Copper Passive DAC Cable 0.5~3 meter

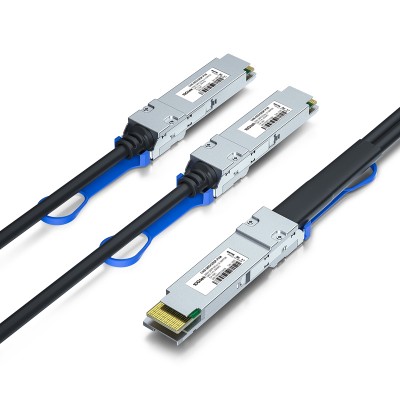

200G QSFP-DD to 2x100G QSFP28 Passive Direct Attach Copper Breakout Cable application is "break-out" DAC assembly which is a hybrid transition from a QSFP-DD on one terminal to two individual QSFP28 on the other.
The QSFP-DD to two parallel bi-directional channels each operating at up to 100Gbps.

Features:

• Same footprint as QSFP interconnects for backward compatibility
• Length: 0.5~2 meters
• Passive
• MCU
• 30/26AWG
• Low power consumption
• Excellent EMI performance
• Temp. Range (℃): 0~70

Applications:

• Ethernet 40G, 100G, 200G
• InfiniBand HDR, EDR, QDR
• Rack-to-Rack, Shelf-to-Shelf Interconnect
• TOR (Top of Rack)

Compliant:

• Compliant to IEEE 802.3cd and IEEE 802.3bs
• InfiniBand HDR, EDR, QDR
• RoHS compliant
