10Gtek internal 24G SAS cable assembly is the new generation SAS high-density high-speed I/O interface and cable assembly.
This interface SFF-8654 is complaint for the SAS 4.0 standard, which supports data rate up to 24G/s.
This product effectively releases the bottleneck of I/O channel and meets direct attached storage high performance requirements.

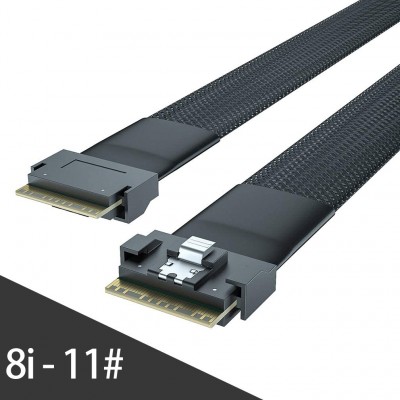

For internal SAS slimline cable, 10Gtek designs several angles of connection, including Straight to Straight, Right Angle and Side Exit.
Features
- Length: 0.5~1 meter
- Data Rate: Up to 24Gb/s per channel
- SFF-8654 compliant
- Connector A: Internal Slimsas (SFF-8654)
- Connector B: Internal Slimsas (SFF-8654)
- Impedance: 85-Ohms
- 32AWG
Applications
- SAS
- PCIe
- Direct-attached storage (DAS)
- Servers
- Data Storage
- Workstation
Product Connector Option:
More Information
| Custom SKU | CAB-8654/8654-8i-P-85 | CPN | CAB-8654/8654-8i-P-85 |
|---|---|---|---|
| Model | CAB-8654/8654-8i-P-85 | Rate | 24G |
| Interface | SFF-8654 to SFF-8654 | Spec. P/A | Passive |
| Spec. Impedance | 85 ohm | Spec. AWG | 32 |
| Brand | 10Gtek |
