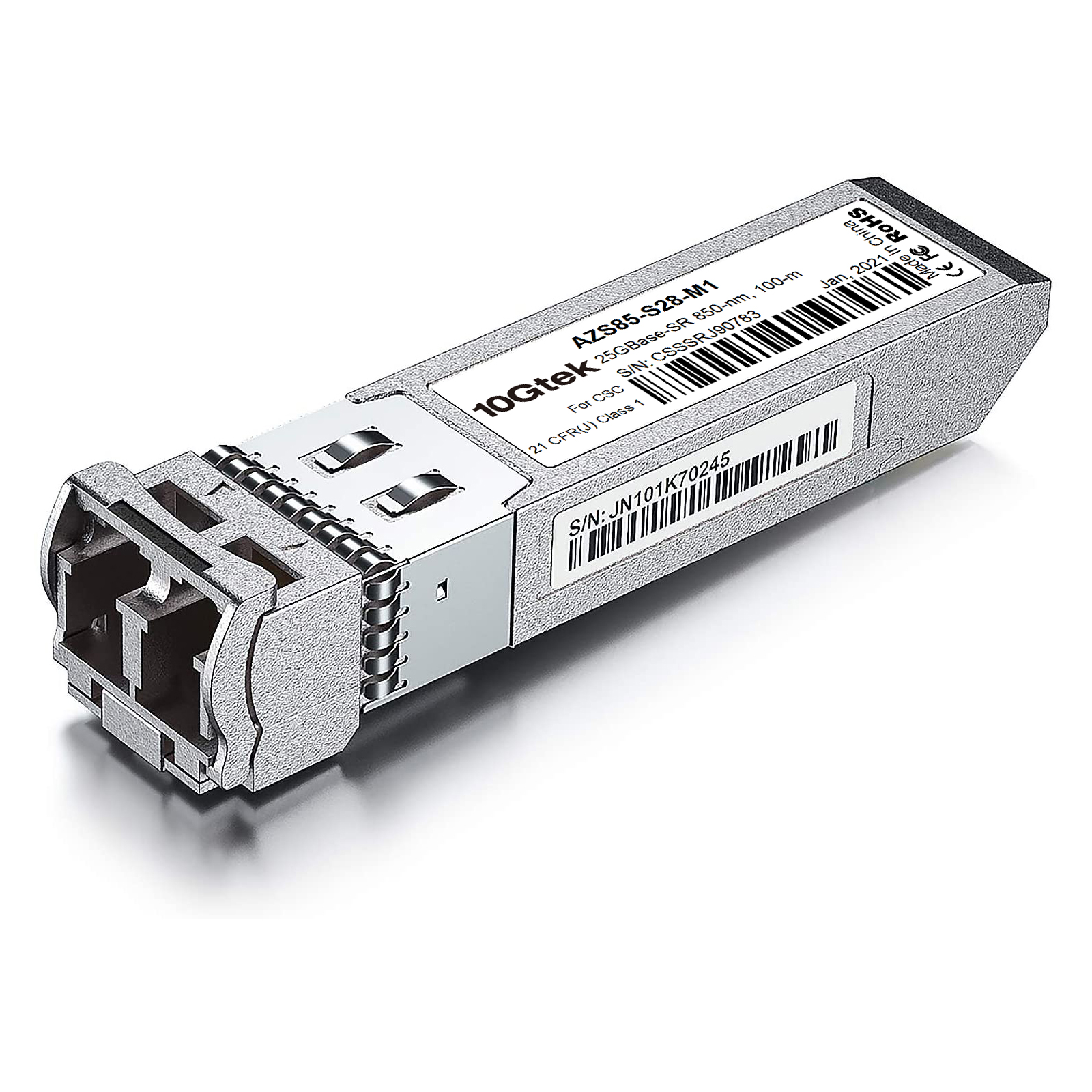

The AZS85-S28-M1 is an 850 nm VCSEL 25Gigabit SFP28 transceiver.
It is designed to transmit and receive optical data over 50/125μm multimode optical fiber (MMF) and support up to 70m on OM3 MMF and 100m on OM4 MMF.
The module has a duplex LC optical interface and all mechanical characteristics are compliant with the current SFP+ specification (SFF-8431 and SFF-8432).
UNH-IOL Interoperability Test Report:
UNH-IOL_10GTEK_AZS85-S28-M1_Test_Report_Cumulus_3.4_Accton_5712 1.pdf
Features:
- 10G, 25G multi-rate
- 850nm VCSEL laser and PIN photo-detector
- up to 70 meters OM3 MMF
- up to 100 meters OM4 MMF
- Wavelength: 850-nm
- Dual LC connectors
Applications:
- 25GBase-SR Ethernet
- InfiniBand QDR, SDR, DDR
- Servers, switches, storage and host card adapters
More Information
| CPN | AZS85-S28-M1 | Custom SKU | AZS85-S28-M1 |
|---|---|---|---|
| Model | AZS85-S28-M1 | Compatible | Brocade |
| Compatible Model | 25G-SFP28-SR | MSA | 25GBase-SR |
| Rate | 25G | Multi Rate | multi-rate |
| Reach | 100m | Reach1 | 100m@OM4 |
| Wavelength | 850nm | Interface | Dual LC |
| Fiber Cable | MMF | Compatible | 10Gtek offer Compatible Service |
| Temp. | 0 to 70°C (32 to 158°F) | Form Type | SFP28 |
| DOM Support | Yes | Max Data Rate | 25.78Gbps |
| Brand | 10Gtek |
