    3m(10ft) 100G QSFP28 to QSFP28 Twinax Copper Passive DAC Cable Solarflare Compatible
    Loading...

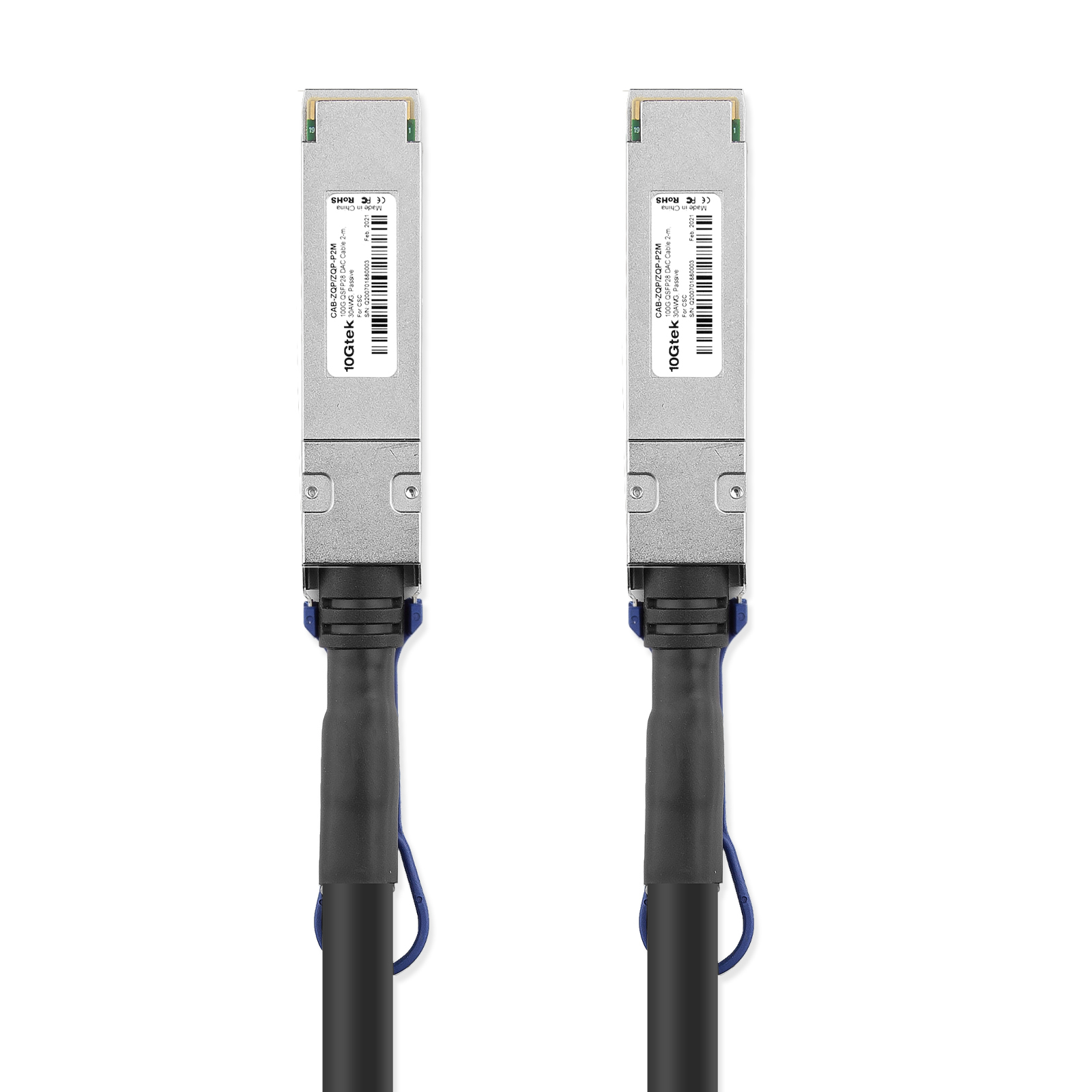

    3m(10ft) 100G QSFP28 to QSFP28 Twinax Copper Passive DAC Cable Solarflare Compatible

    #6505
    SKU:CAB-ZQP/ZQP-P
    0 Question(s)
    As low as $24.90

    Maximum 120 characters

    ● 100GBase-CR4
    ● Length: 0.5~5 meters
    ● 8-pair differential twinax Cable
    ● Passive
    ● MCU
    ● 30/28/26AWG

    ● 10Gtek offer Compatible Service

    100Gb/s QSFP28 DAC, 8 pair differential copper pairs providing four data transmission channels at speeds up to 28Gbps per channel, and meets 100G Ethernet (4 x 25Gb/s) and InfiniBand EDR (Enhanced Data Rate) requirements.
    These 100G copper cable assembly features a unique construction with individually wrapped Twinax pairs, resulting in low insertion loss and low crosstalk.

    Features:

    • 100GBase-CR4
    • Length: 0.5~5 meters
    • 8-pair differential twinax Cable
    • Passive
    • MCU
    • 30/28/26AWG
    • Low power consumption
    • Excellent EMI performance
    • Temp. Range(℃): 0~70

    Applications:

    • Ethernet 100G, 40G
    • InfiniBand 4X SDR, DDR, QDR, EDR, FDR
    • Fiber Channel 10G, 40G, 100G
    • Rack-to-Rack, Shelf-to-Shelf Interconnect
    • TOR (Top of Rack)

    Compliant:

    • 100G Ethernet (IEEE 802.3bj)
    • InfiniBand EDR
    • SFF-8665
    • RoHS compliant

    More Information

    Custom SKUCAB-ZQP/ZQP-P ModelCAB-ZQP/ZQP-P
    CompatibleSolarflare Spec. AWG30/28/26
    MSA100GBase-CR4 Rate100G
    InterfaceQSFP28 to QSFP28 Spec. P/APassive
    Spec. E/MMCU Spec. Impedance100 ohm
    Brand10Gtek
