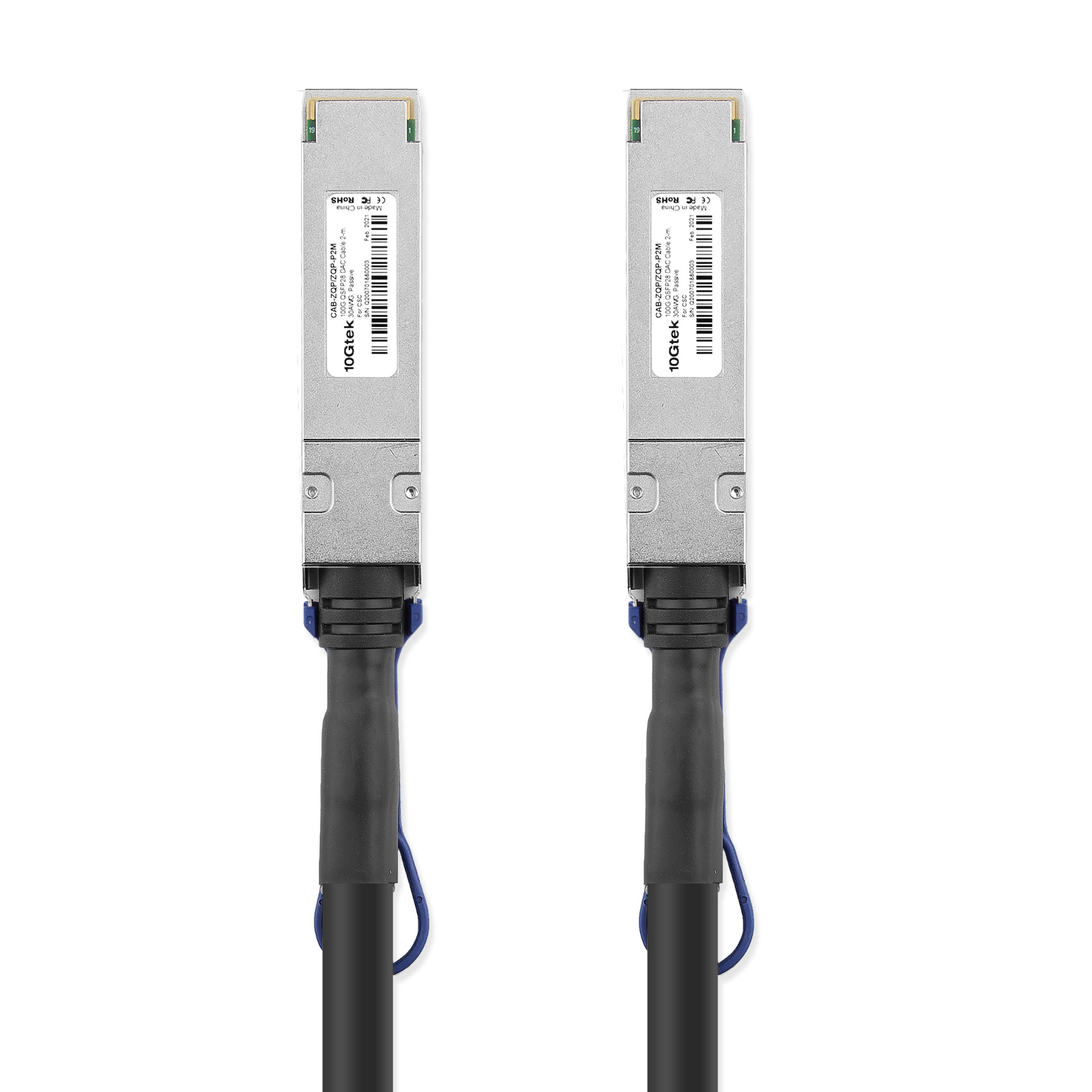

100Gb/s QSFP28 DAC, 8 pair differential copper pairs providing four data transmission channels at speeds up to 28Gbps per channel, and meets 100G Ethernet (4 x 25Gb/s) and InfiniBand EDR (Enhanced Data Rate) requirements.
These 100G copper cable assembly features a unique construction with individually wrapped Twinax pairs, resulting in low insertion loss and low crosstalk.
Features:
- 100GBase-CR4
- Length: 0.5~5 meters
- 8-pair differential twinax Cable
- Passive
- MCU
- 30/28/26AWG
- Low power consumption
- Excellent EMI performance
- Temp. Range(℃): 0~70
Applications:
- Ethernet 100G, 40G
- InfiniBand 4X SDR, DDR, QDR, EDR, FDR
- Fiber Channel 10G, 40G, 100G
- Rack-to-Rack, Shelf-to-Shelf Interconnect
- TOR (Top of Rack)
Compliant:
- 100G Ethernet (IEEE 802.3bj)
- InfiniBand EDR
- SFF-8665
- RoHS compliant
More Information
| Custom SKU | CAB-ZQP/ZQP-P | Model | CAB-ZQP/ZQP-P |
|---|---|---|---|
| Compatible | Extreme | Compatible Model | 10413 |
| Spec. AWG | 30/28/26 | MSA | 100GBase-CR4 |
| Rate | 100G | Interface | QSFP28 to QSFP28 |
| Spec. P/A | Passive | Spec. E/M | MCU |
| Spec. Impedance | 100 ohm | Brand | 10Gtek |
