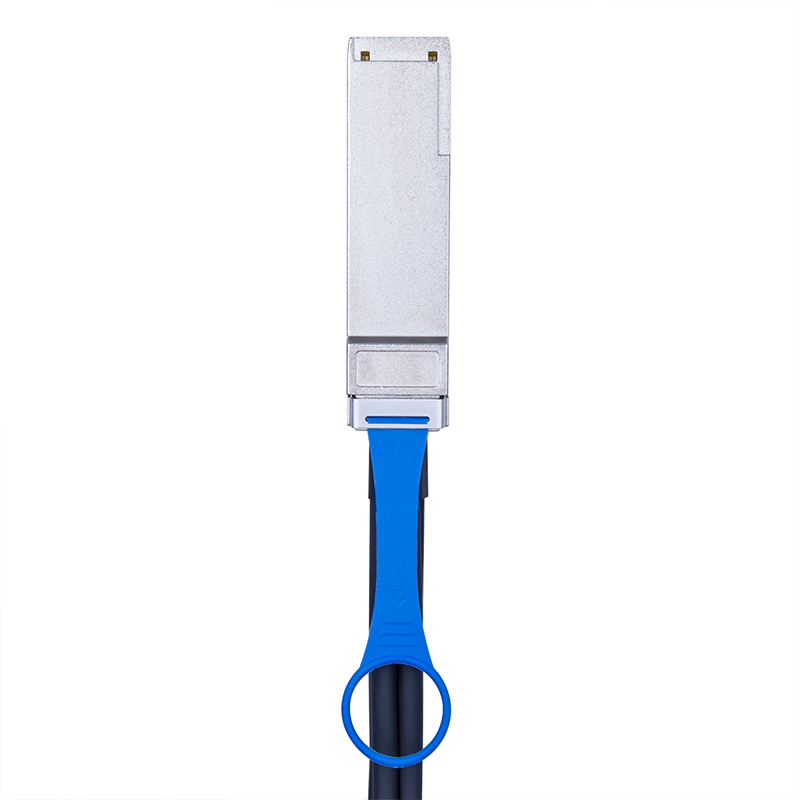

400G QSFP-DD to 8x50G SFP56 Passive Direct Attach Copper Breakout Cable application is "break-out" DAC assembly which is a hybrid transition from a QSFP-DD on one terminal to eight individual SFP56 on the other. The QSFP-DD to eight parallel channels each operating at up to 50Gbps.
Features:
- backward compatible with QSFP+ and SFP56 modules
- Length: 0.5~2 meters
- Passive
- MCU
- 30/26AWG
- Low power consumption
- Excellent EMI performance
- Temp. Range(℃): 0~70
Applications:
- Ethernet 40G, 100G, 200G, 400G
- InfiniBand NDR, HDR, EDR, QDR
- Rack-to-Rack, Shelf-to-Shelf Interconnect
- TOR (Top of Rack)
Compliant:
- compliant to IEEE 802.3cd and IEEE 802.3bs
- InfiniBand NDR, HDR, EDR, QDR
- RoHS compliant
More Information
Custom SKU | CAB-Q400/8S56-P | CPN | CAB-Q400/8S56-P |
---|---|---|---|
Model | CAB-Q400/8S56-P | Compatible | Cisco |
Spec. AWG | 30/26 | MSA | QSFP-DD |
Rate | 400G | Max Data Rate | 400Gbps |
Multi Rate | multi-rate | Interface | QSFP-DD to (8) 50G SFP56 |
Spec. P/A | Passive | Spec. E/M | MCU |
Brand | 10Gtek |
