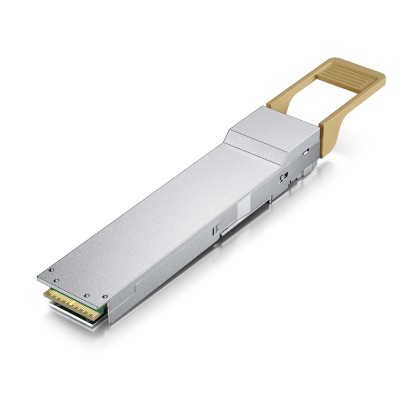

400Gb/s Single-port, QSFP112 Multimode SR4 Transceiver, MPO-12 APC MMF, up to 100m, compare to Nvidia MMA1Z00-NS400

10Gtek’s Q112-SR4-MF-M1 are QSFP112 VCSEL-based retimed optical transceivers designed for use in hyperscale data centers and high-performance computing systems. 10Gtek’s optics solution leverages 10Gtek’s patent direct optical wiring (DOW) technology, enabling high- precision and high-density submillimeter scale optical assembly with best cost-effectiveness.

Features

● QSFP112 MSA Compliant

● Hot-pluggable QSFP112 form factor

● Four-channels full-duplex transceiver module

● Data rate up to 425 Gb/s

● Retimed 4×106.25 Gb/s PAM4 electrical interface

● Transmission distance up to 100 m

● MPO12/APC receptacle

● Typical power consumption of 6.5 W

● Commercial operating case temperature range of 0°C to 70°C

● Single 3.3 V power supply

● CMIS 5.0 or later

● I2C Management Interface

● RoHS/REACH compliant

Applications

● AI/ML-specific proprietary systems

● High performance computing systems

● Ethernet-based data centers
