QSFP+ transceiver is compliant to MSA SFF-8436 40GBASE-IR4, OTU3 and IEEE 802.3ba.

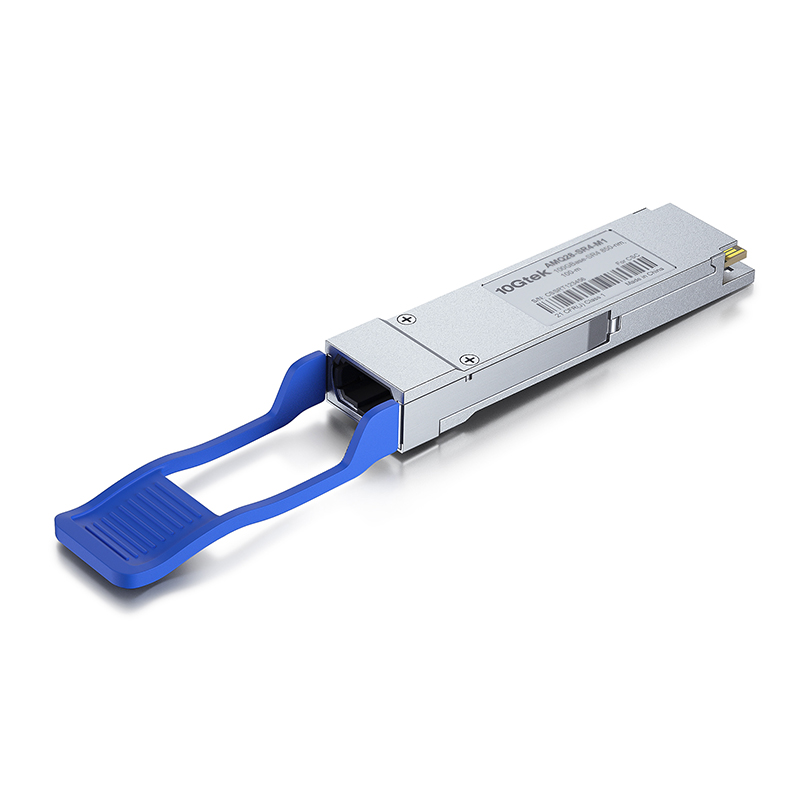

This is a parallel 40Gb/s QSFP+ optical module, terminated with single mold MPO or MTP Connectors.
40G IR4 PSM QSFP+ module supports 1.4 km transmission over SMF.
To better ensure the performance, the following 10Gtek-made SMF MPO/MTP cables are recommended to be used for connecting the QSFP+ transceivers.
10Gtek's QSFP+ transceivers pass the following IOL Interoperability test with most major brands for both OS and hardware compatibility.
Features:
- 40GBase-LR4 Lite, 40GBase-IR4
- Data Rate: 40G, QDR
- Ratch: up to 1.4 km
- Wavelength: 1310-nm
- Interface: 8 Core MPO/MTP
- Fiber Type: SMF (Parallel Single Mode)
- Power Consumption: <3W
- Excellent EMI performance
- Temp. Range(℃): 0~70
Applications:
- Ethernet 10G, 40G
- InfiniBand 4X SDR, DDR, QDR
- Fiber Channel 10G, 40G
- Rapid IO
- Rack-to-Rack, Shelf-to-Shelf Interconnect
- TOR (Top of Rack)
More Information
| CPN | AMQ10-IR4-02 | Custom SKU | AMQ10-IR4-02 |
|---|---|---|---|
| Model | AMQ10-IR4-02 | Compatible | Dell (Force10) |
| MSA | 40GBase-LR4 Lite | MSA1 | 40GBase-IR4 |
| Rate | 40G | Reach | 1.4km |
| Wavelength | 1310nm | Interface | MPO/MTP |
| Fiber Cable | SMF | Compatible | 10Gtek offer Compatible Service |
| Temp. | 0 to 70°C (32 to 158°F) | Form Type | QSFP+ |
| DOM Support | Yes | Max Data Rate | 44.8Gbps |
| Brand | 10Gtek |
