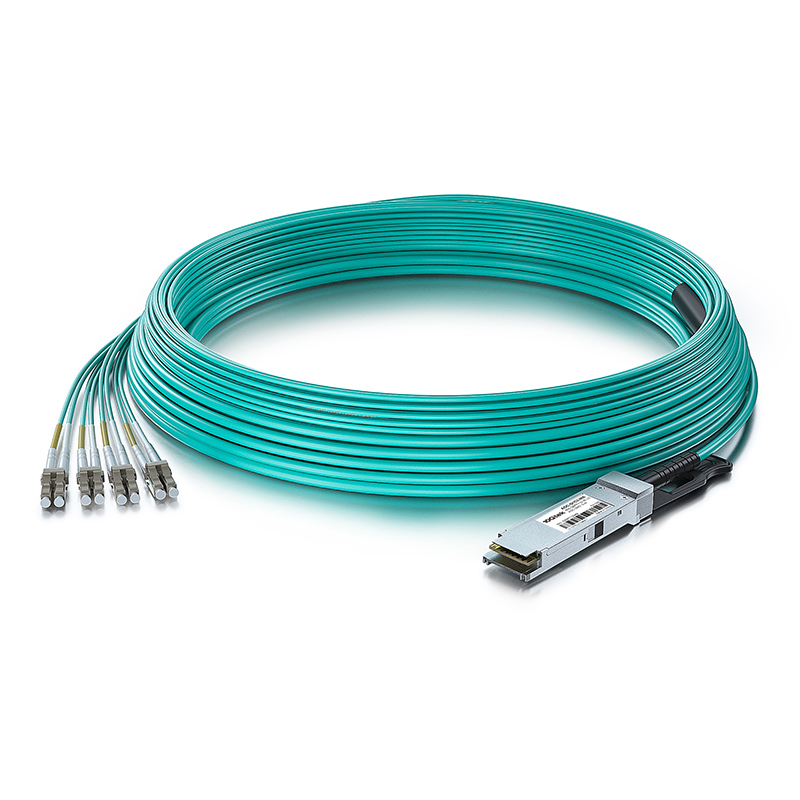

100m(328ft) QSFP+ to (8x) LC AOC Extreme Compatible 40G Active Optical Cable

10Gtek’s QSFP+ to 8x LC AOC cable is a 40GBase QSFP+ hybrid optical cable. A side is a QSFP+ optical connector, B side is 8xLC optical connectors.

Features:

• 40GBase QSFP+ to 8x LC Connectors
• OM3 MMF Cable
• Full duplex 4 channel 850nm parallel active optical cable
• Transmission data rate up to 10.3Gbit/s per channel
• SFF-8436 QSFP+ compliant housing and hot pluggable electrical interface.
• Management Interface and digital diagnostic monitoring(DDM) through I2C
• Support Rx output pre-emphasis
• 4ch 850nm VCSEL array
• 4ch PIN photo detector array
• Helix type multi-mode optical fibre cable of up to 100m
• OFNP (Optical Fibre Non-Conductive Plenum) rated cable
• Differential AC-coupled high speed data interface
• Low power consumption of typical 0.8W per end
• Housing isolated from connector ground
• Easy to use release mechanism
• Operating case temperature 0ºC to +70ºC
• 3.3V power supply voltage
• RoHS 6 compliant
• Laser Class 1

Applications:

• Infiniband transmission at 4ch SDR(2.5Gbit/s), DDR(5Gbit/s) and QDR(10Gbit/s)
• Multi-channel 10Gb Ethernet transmission up to 4 channels
• Fiber Channel transmission at 8.5Gbit/s per channel, up to 4 channels
• QSFP+ to LC cables with MT connectors for plugging into existing cable runs or patch pannels
• Creating a breakout cable with four Duplex LC connectors for port expander applications
• SDR / DDR / QDR
