    30m(98ft) QSFP+ to (8x) LC AOC Intel Compatible 40G Active Optical Cable
    Loading...

    30m(98ft) QSFP+ to (8x) LC AOC Intel Compatible 40G Active Optical Cable

    #6929
    SKU:AOC-Q1C2
    0 Question(s)
    As low as $69.00

    Maximum 120 characters

    ● 40GBase-AOC
    ● 1~100 meters
    ● QSFP+ to (8) LC
    ● OM3 MMF
    ● EEPROM I2C

    ● 10Gtek offer Compatible Service

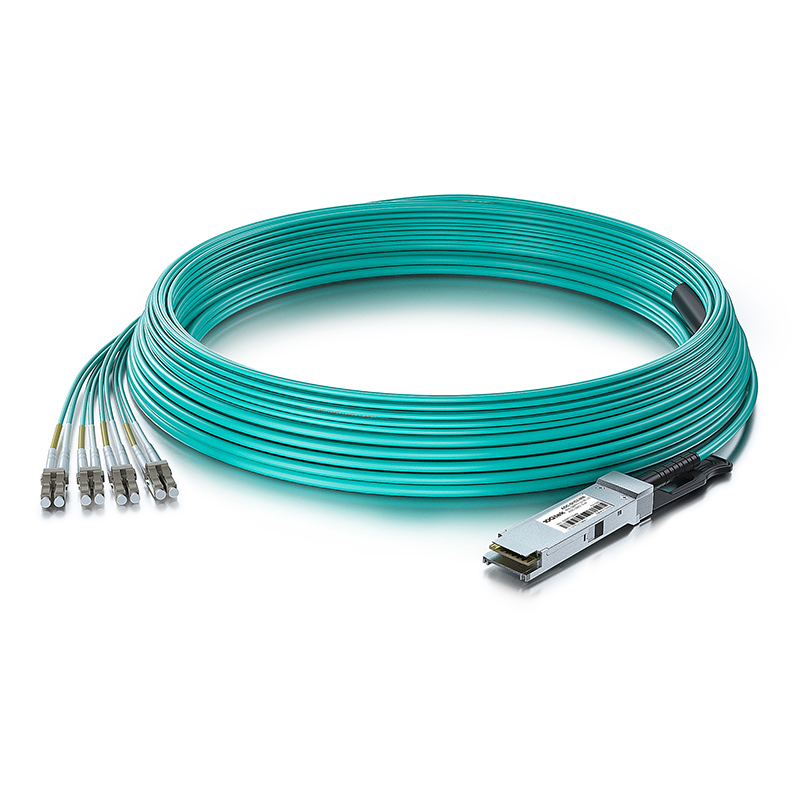

    10Gtek’s QSFP+ to 8x LC AOC cable is a 40GBase QSFP+ hybrid optical cable. A side is a QSFP+ optical connector, B side is 8xLC optical connectors.

    Features:

    • 40GBase QSFP+ to 8x LC Connectors
    • OM3 MMF Cable
    • Full duplex 4 channel 850nm parallel active optical cable
    • Transmission data rate up to 10.3Gbit/s per channel
    • SFF-8436 QSFP+ compliant housing and hot pluggable electrical interface.
    • Management Interface and digital diagnostic monitoring(DDM) through I2C
    • Support Rx output pre-emphasis
    • 4ch 850nm VCSEL array
    • 4ch PIN photo detector array
    • Helix type multi-mode optical fibre cable of up to 100m
    • OFNP (Optical Fibre Non-Conductive Plenum) rated cable
    • Differential AC-coupled high speed data interface
    • Low power consumption of typical 0.8W per end
    • Housing isolated from connector ground
    • Easy to use release mechanism
    • Operating case temperature 0ºC to +70ºC
    • 3.3V power supply voltage
    • RoHS 6 compliant
    • Laser Class 1

    Applications:

    • Infiniband transmission at 4ch SDR(2.5Gbit/s), DDR(5Gbit/s) and QDR(10Gbit/s)
    • Multi-channel 10Gb Ethernet transmission up to 4 channels
    • Fiber Channel transmission at 8.5Gbit/s per channel, up to 4 channels
    • QSFP+ to LC cables with MT connectors for plugging into existing cable runs or patch pannels
    • Creating a breakout cable with four Duplex LC connectors for port expander applications
    • SDR / DDR / QDR

    More Information

    Custom SKUAOC-Q1C2 CPNAOC-Q1C2
    ModelAOC-Q1C2 CompatibleIntel
    MSA40GBase-AOC Rate40G
    Max Data Rate40Gbps InterfaceQSFP+ to (8) LC
    Spec. P/AActive Spec. E/MEEPROM
    Brand10Gtek
