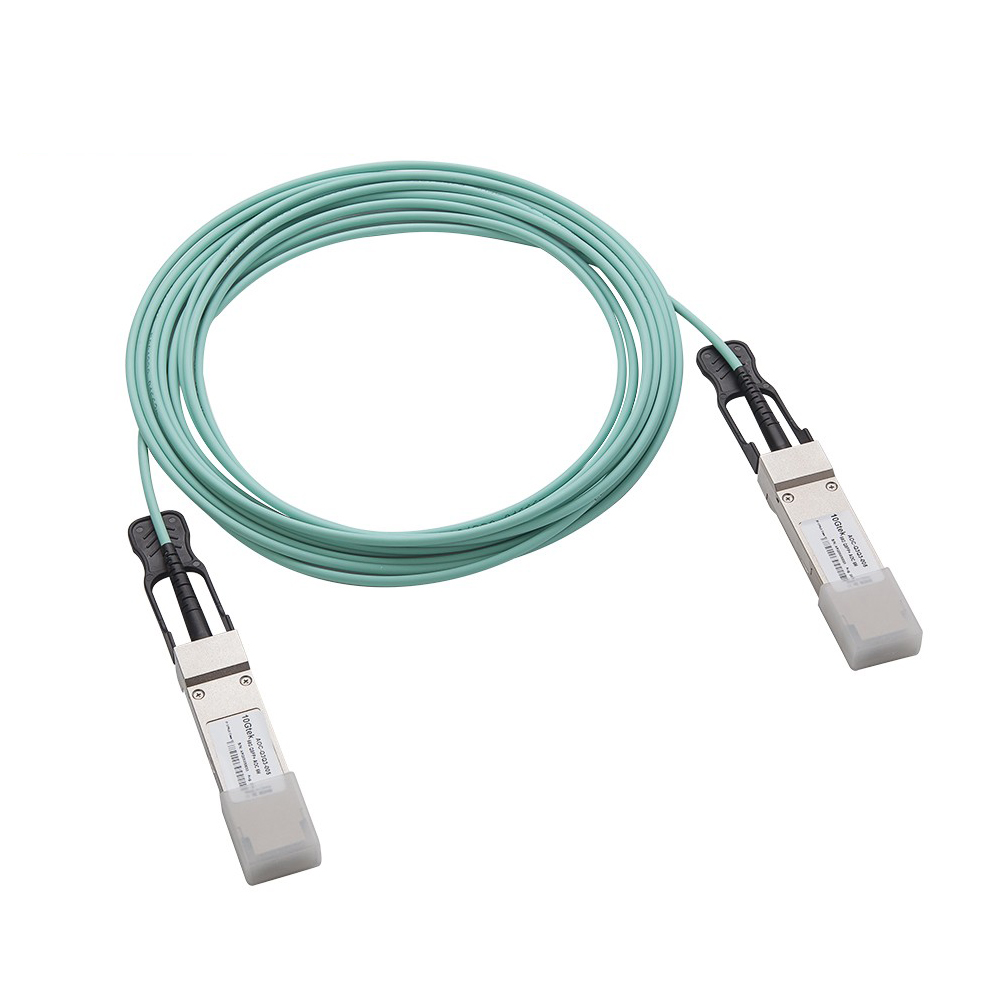

10Gtek Interconnect Solutions 56Gb/s Low Power Active Optical Cable assemblies offer a cost-effective, extended reach option for high-speed data center interconnects. Using 850nm VCSEL technology, 10Gtek QSFP+ cable is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 14 Gb/s per direction, providing an aggregated rate of 56 Gb/s. The cable is available in a number of standard lengths up to 100 meters.
Features:
- 4-channel bi-directional AOC with aggregated bandwidth of 56-Gbps (Electrical Interface Only)
- Compliant to SFF-8436 QSFP+ Specification Revision 4.1
- Supports 56-Gbps aggregated data-rate links up to 100-Meter
- Low power consumption of max 1.5 W (Compliant to Power Level 1)
- Hot pluggable electrical interface
- 0 to 70℃ case temperature operating range
- RoHS Compliance and Lead-Free
Applications:
- InfiniBand FDR,QDR,DDR,and SDR
- 40GBASE-SR4 Ethernet links
- 4G/8G/10G Fiber Channel
- SATA/SAS Storage
- HPC Interconnects
- Proprietary Interconnections
More Information
| Custom SKU | AOC-Q3Q3 | CPN | AOC-Q3Q3 |
|---|---|---|---|
| Model | AOC-Q3Q3 | Compatible | Arista |
| MSA | 56GBase-AOC | Rate | 56G |
| Max Data Rate | 56Gbps | Interface | QSFP+ to QSFP+ |
| Spec. P/A | Active | Brand | 10Gtek |
