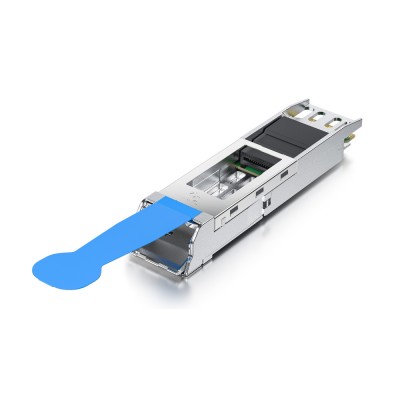

800G OSFP to 800G/400G QSFP-DD or 100G QSFP28 Adapter (ODA) Module

Product description:

10Gtek 's ODA-800 is a high-performance adapter designed to bridge the gap between OSFP and QSFP ports. Its design assures minimum loss on the conversion path between the OSFP cage and the QSFP-DD receptacle. Its plug-and-play design simplifies installation and reduces downtime, while robust construction ensures reliable performance.

The high-speed data channel of the QSFP-DD receptacle is connected to lane 1~8 of the OSFP connector, provides 800 Gigabit Ethernet transmission. The ODA-800 also provides the OSFP with connectivity for 800 Gigabit Ethernet transmission to 400, 200 or 100 Gigabit Ethernet. When the other end of the network is running at lower speeds, it provides the option of using a lower-speed QSFP-DD or QSFP module in an empty OSFP port, enabling a smooth and cost-effective migration to 800 Gigabit Ethernet.

Features:

• Compliant with IEEE802.3df (800GBASE-CR8)
• Compliant with IEEE802.3ck (400GBASE-CR8)
• Compliant with IEEE802.3cd (400GBASE-CR8)
• Compliant with IEEE802.3bj (100GBASE-CR4)
• Compliant with IEEE802.3ba (40GBASE-CR)
• Data rates : 56Gbps/Lane(or 112Gbps/Lane)
• I/O Connector designed for high speed differential signal applications
• Connector Compliant with OSFP Octal Small form factor Pluggable module - OSFP MSA & QSFP-DD MSA Standard
• 100ohm differential impedance system
• Low Power Consumption < 0.5W
• Single +3.3V power supply
• Support transceiver power consumption＜16W
• RoHS compliant



Applications:

• Storage, Switch, & RAID Systems
• High-Performance Computing (HPC)
• Network Interface Cards (NIC's)
• Telecommunication equipment
• Data center and enterprise storage systems
