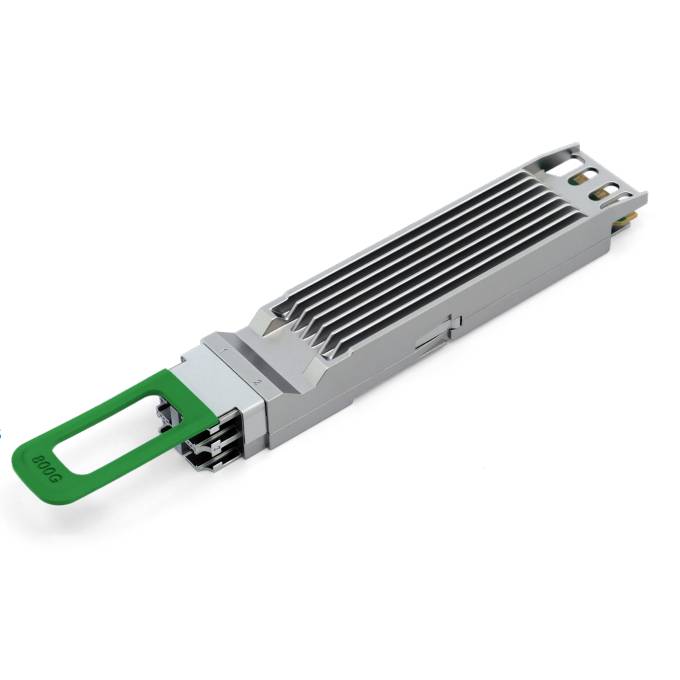

800Gbps Twin-port OSFP 2xFR4, 2x400Gb/s Single Mode, 2km, Compare to Nvidia MMS4X50-NM

10Gtek’s OSFP transceiver module is designed for use in 800 Gigabit Ethernet links over 2km single mode fiber. The module has 8 independent electrical input/output channels operating up to 106.25Gbps per channel.
This transceiver consists of two transmitter/receiver units, with each operating on a set of 4 wavelengths on the ITU G.694.2 CWDM grid near 1300nm. The transmitter path of the module incorporates a bi-directional PAM4 re-timer ASIC integrated with an 8-channels modulator driver, 8 externally modulated lasers and two optical multiplexers. On the receiver path, two optical de-multiplexers are coupled to 8 photodiodes and two
4-channel TIA arrays, along with the PAM4 re-timer. The electrical interface of the module is compliant with the 800GAUI-8 interface as defined by IEEE 802.3ck, and compliant with OSFP MSA.

Features
● Supports 850Gbps
● Single 3.3V Power Supply
● Up to 2km over SMF with KP4 FEC supported at the Host side
● Dual duplex LC connector
● 8x106.25Gbps (PAM4) electrical interface
● PIN and TIA array on the receiver side
● Power dissipation < 16W
● Case temperature range: 0°C to 70°C (commercial)
● RoHS compliant (lead free)

Applications
● 1x800G Ethernet
● 2x400G Ethernet
● 2x200G Ethernet
