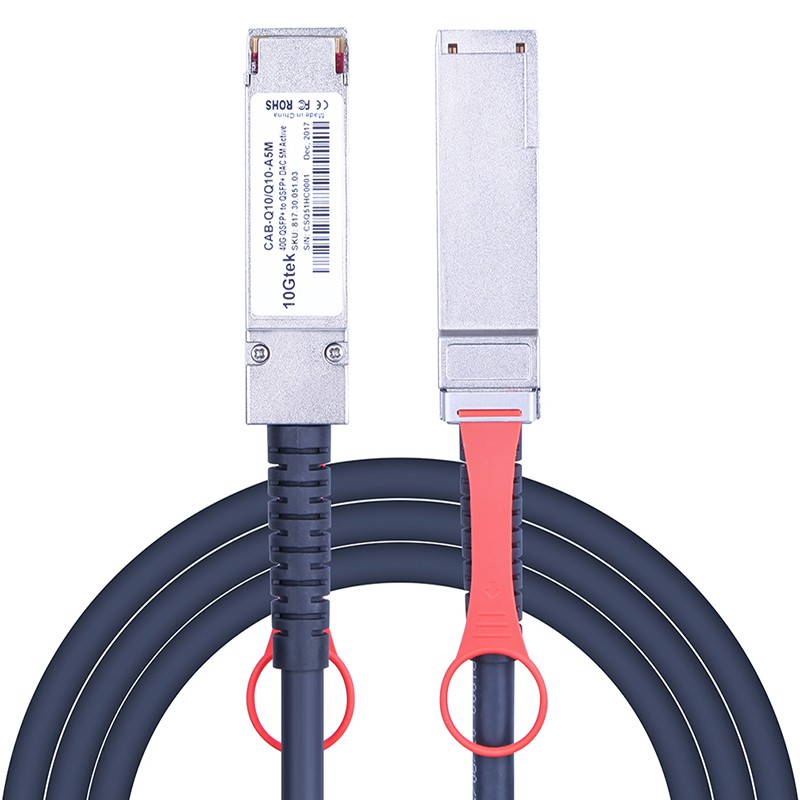

7m(23ft) 40G QSFP+ to QSFP+ Active DAC Cable Mikrotik Compatible

Active DAC design has a signal amplification and a class 4x 10G Clock and Data Recovery(CDR) or Equalizer technology to support longer distances than passive DAC cable.
QSFP+ DAC based on IEEE 802.3ba and compliant MSA SFF-8436, application in 40G Ethernet, infiniband QDR and Omni-path, suitable for very short distances transmission and offer a highly cost-effective solution to establish a 40-Gigabit link between QSFP+ ports and QSFP+ switches within racks and across adjacent racks. For I2C, there are 2 designs with MCU or with EEPROM, MCU design is for "HPE (H3C)" and some model of "Cisco Switch", the EEprom design is for many brands device.

Notice:

1. Our 40G QSFP+ DAC could not support "Aruba (HP Provurve)" devices.

Features:

• 40GBase-ACU4
• Length: 5~10 meters
• 8-pair differential twinax Cable
• Active
• EEPROM I2C (MCU for Cisco or HPE compatible)
• 30/28/26AWG
• Low power consumption
• Excellent EMI performance
• Temp. Range(℃): 0~70

Applications:

• Ethernet 10G, 40G
• InfiniBand 4X SDR, DDR, QDR
• Fiber Channel 10G, 40G
• Rapid IO
• Rack-to-Rack, Shelf-to-Shelf Interconnect
• TOR (Top of Rack)
