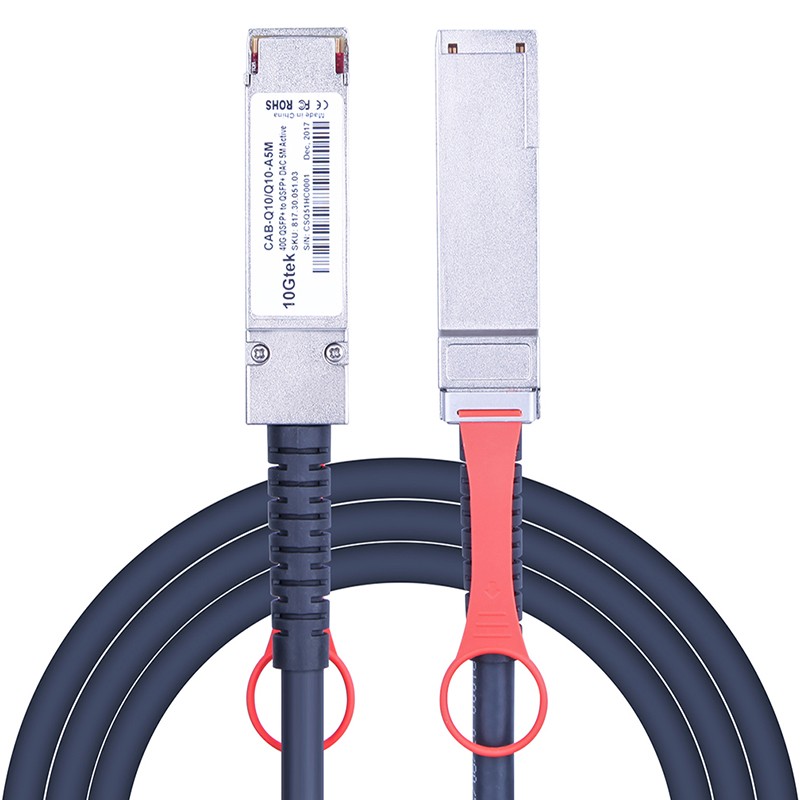

Active DAC design has a signal amplification and a class 4x 10G Clock and Data Recovery(CDR) or Equalizer technology to support longer distances than passive DAC cable.
QSFP+ DAC based on IEEE 802.3ba and compliant MSA SFF-8436, application in 40G Ethernet, infiniband QDR and Omni-path, suitable for very short distances transmission and offer a highly cost-effective solution to establish a 40-Gigabit link between QSFP+ ports and QSFP+ switches within racks and across adjacent racks. For I2C, there are 2 designs with MCU or with EEPROM, MCU design is for "HPE (H3C)" and some model of "Cisco Switch", the EEprom design is for many brands device.
Notice:
- Our 40G QSFP+ DAC could not support "Aruba (HP Provurve)" devices.
Features:
- 40GBase-ACU4
- Length: 5~10 meters
- 8-pair differential twinax Cable
- Active
- EEPROM I2C (MCU for Cisco or HPE compatible)
- 30/28/26AWG
- Low power consumption
- Excellent EMI performance
- Temp. Range(℃): 0~70
Applications:
- Ethernet 10G, 40G
- InfiniBand 4X SDR, DDR, QDR
- Fiber Channel 10G, 40G
- Rapid IO
- Rack-to-Rack, Shelf-to-Shelf Interconnect
- TOR (Top of Rack)
More Information
Custom SKU | CAB-Q10/Q10-A | Model | CAB-Q10/Q10-A |
---|---|---|---|
Compatible | Ubiquiti(UBNT) | Spec. AWG | 30/28/26 |
MSA | 40GBase-ACU4 | Rate | 40G |
Interface | QSFP+ to QSFP+ | Spec. P/A | Active |
Spec. E/M | MCU or EEPROM | Spec. Impedance | 100 ohm |
Brand | 10Gtek |
