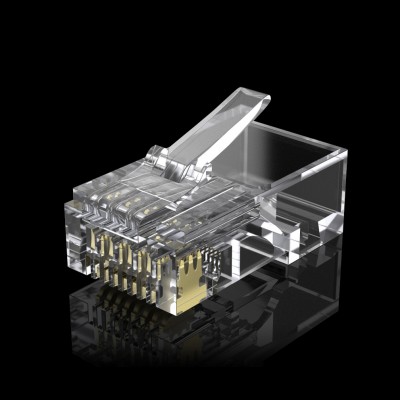

CAT.6 RJ-45 UTP Connectors, RJ-45 Modular Plugs with flexible latch, 100-Pack

CAT6-8P8C-15u, 10Gtek CAT.6 RJ-45 UTP connector, has flexible latch and high reliable PINs.
Performance matches TIA/EIA568-C requirements and passes Salt Spray 24-hour test.
The combination of gold-plated contacts provides reliable performance for 1000M/10Gbps rated network.
Package: 100 /pack

Features

• 125V AC max at 1.5 amps
• Cable-to-Plug tensible strength 30N max.
• Durability: 750 mating cycles
• The bandwidth of frequency up to 350MHZ

Applications

• The latch is flexible and can be bend into a large angle for several times.
• Performance matches TIA/EIA requirements. Connectors can pass Fluke test.
• PINs are made by Phosphor bronze, Nickelage, Gilding. Thickness of gold plating is 15μ. 3-Point staggered contact enhances contact performance. 8 PINs are staggered arrangement to avoid crosstalk.
• High reliability, can be pluged up to 750 cycles.5. CAT.6, UTP.

Specifications

• Data rate: 1000M/10Gbps
• Thickness of gold plating: 15μ
• Temperature: - 40℃ ~ 70℃
• Shell material: PC
• PIN material: Phosphor bronze, Nickelage, Gilding
