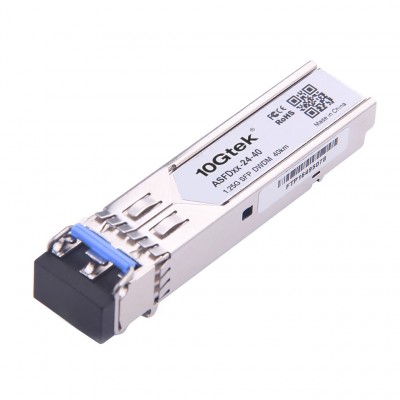

10Gtek's ASFDx-24-xxx Dense Wavelength Division Multiplexing (DWDM) Small Form-Factor Pluggable (SFP) transceiver has high-speed transmission rate and space-saving size that are required by the modern network requirement.
The DWDM SFP complies with the Multi-Source Agreement (MSA) and compatible with broad network equipment. The transceiver is designed for bi-directional serial optical data communication such as 4x/2x/1x Fibre Channel, SDH/SONET, Ethernet application, and meet the specifications of the IEEE802.3 Gigabit Ethernet standard and ANSI Fibre Channel.
What's more, both of the Gigabit Ethernet and Fiber Channel are the designated working environments of the ASFDx-24-xxx.
10Gtek offers DWDM SFP transceivers for transmission range from 40 km to 120 km.
Features:
- Data rates from 100Mbps to 2.67Gbps
- Available in all C-Band Wavelengths on the 100GHz DWDM ITU Grid
- Temperature-Stabilized DWDM DFB Transmitter
- 40 km @ 9/125 μm SMF
- Duplex LC Connector
- Hot-Pluggable SFP Footprint
- Compliant with SFF-8472 MSA
- Operating Case Temperature Standard:0ºC~+70ºC
Applications:
- Gigabit Ethernet
- Fiber Channel
- Other Optical Links
More Information
| MSA | 1000Base-EX | Rate | 1.25G |
|---|---|---|---|
| Reach | 40km | Interface | Dual LC |
| Fiber Cable | SMF | Compatible | 10Gtek offer Compatible Service |
| Temp. | 0 to 70°C (32 to 158°F) | Form Type | SFP |
| DOM Support | Yes | Max Data Rate | 1.25Gbps |
| Brand | 10Gtek |
